description

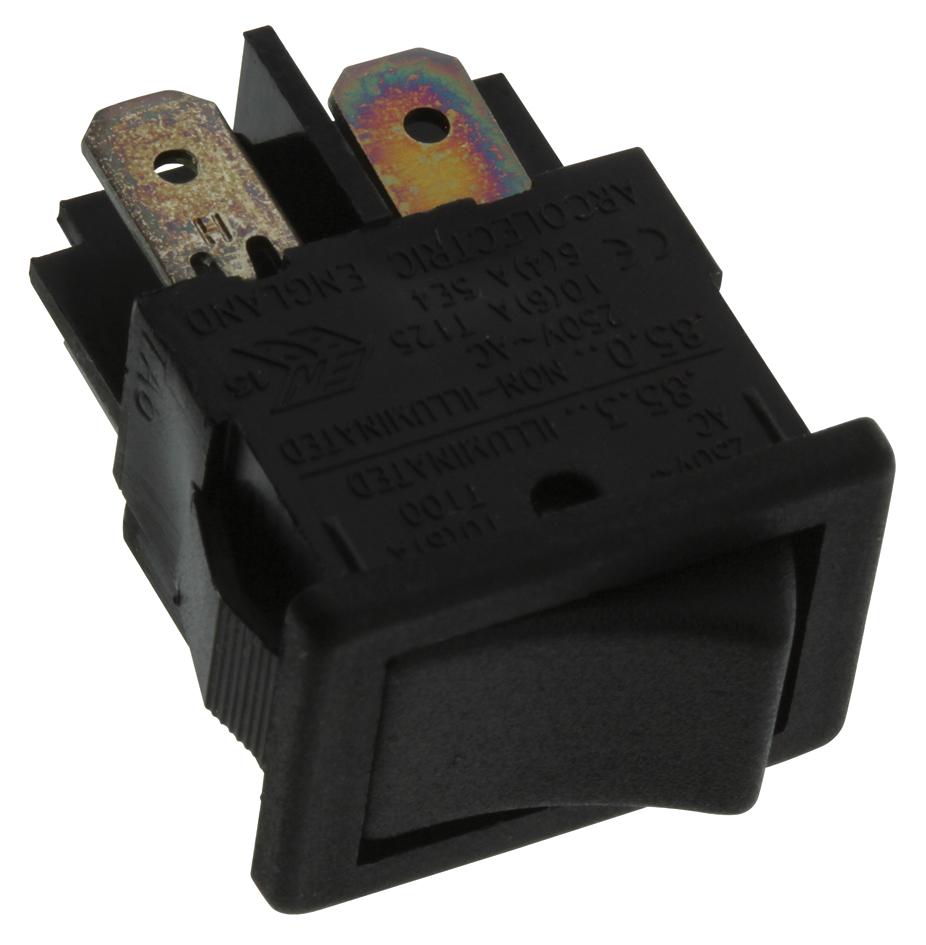

ARCOLECTRIC (BULGIN LIMITED) - H8550VBAAA - Rocker Switch, Miniature, Off-On, DPST, Non Illuminated, Panel Mount, Black, 8500
- Illumination: Non Illuminated
- Contact Configuration: DPST
- Switch Operation: Off-On
- Actuator / Cap Colour: Black
- Switch Mounting: Panel
- Contact Current Max: 15A
- Contact Voltage AC Nom: 277V
- Contact Voltage DC Nom: -
- Product Range: 8500 Series
- SVHC: No SVHC (27-Jun-2018)
- Bezel Height: 21mm
- Bezel Width: 15mm
- Colour: Black
- Contact Current AC Max: 10A
- Contact Resistance: 10mohm
- Contact Voltage AC Max: 250V
- External Depth: 23mm
- External Width: 12.1mm
- Inductive Current Rating: 6A
- Inrush Current: 150A
- Insulation Resistance: 20Mohm
- Length: 16.9mm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 50000
- Operating Temperature Max: 100°C
- Operating Temperature Min: 0°C
- Panel Cutout Size: 19.3 x 13 mm
- Panel Cutout Width: 13mm
- Panel Cutout length: 19.3mm
- Resistive Current Rating: 10A
- Tab Blade Thickness: 0.8mm
- Tab Width: 4.8mm
