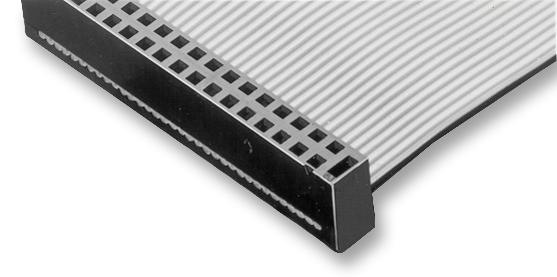

SAMTEC - HCSD-25-01-N . - Ribbon Cable, HCSD Series
- Pitch Spacing: 2.54mm
- No. of Contacts: 50Contacts
- Gender: Receptacle
- Product Range: HCSD Series
- Contact Termination Type: IDC / IDT
- No. of Rows: 2Rows
- Contact Plating: Gold Plated Contacts
- Contact Material: Phosphor Bronze
- SVHC: No SVHC (15-Jan-2018)
- Contact Resistance: 10mohm
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 5000Mohm
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Wire Size AWG Max: 28AWG
- Withstand Voltage: 1000V
