HDSP-4850 LED Bar Array, GRN BROADCOM

BROADCOMUGS :HDSP-4850 Code de commande:1003270

Prix:
Prix ​​promotionnel€7,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (943 unité)

Documents et téléchargements

description

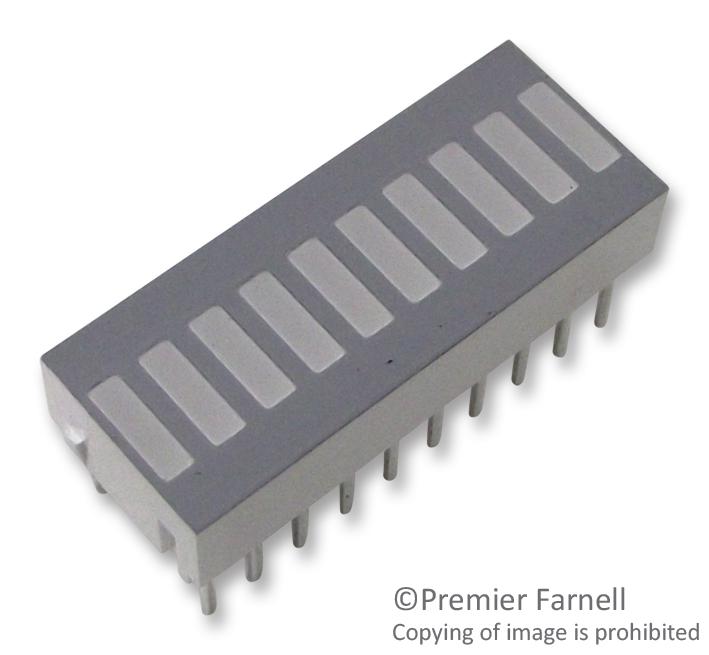

BROADCOM - HDSP-4850 - LED Bar Graph Array, Green, 20 mA, 2.1 V, 1.9 mcd, 10 LEDs, 25.4mm x 10.16mm

  • LED Colour: Green
  • Forward Current If: 20mA
  • Forward Voltage: 2.1V
  • Luminous Intensity: 1.9mcd
  • No. of LEDs: 10LEDs
  • Display Size: 25.4mm x 10.16mm
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • External Depth: 6.1mm
  • External Length / Height: 10.16mm
  • External Width: 25.4mm
  • Forward Voltage VF Max: 2.5V
  • LED Configuration: Bar Array
  • Lead Spacing: 2.54mm
  • Luminous Intensity Typ: 1.9mcd
  • Luminous Intensity per Segment @ If Typ: 1.9mcd
  • No. Segments: 10
  • Nom Current If per Segment: 10mA
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Operating Temperature Range: -20°C to +85°C
  • Peak Forward Current: 30mA
  • Peak Wavelength: 566nm
  • Row Pitch: 7.62mm
  • Wavelength Typ: 566nm
