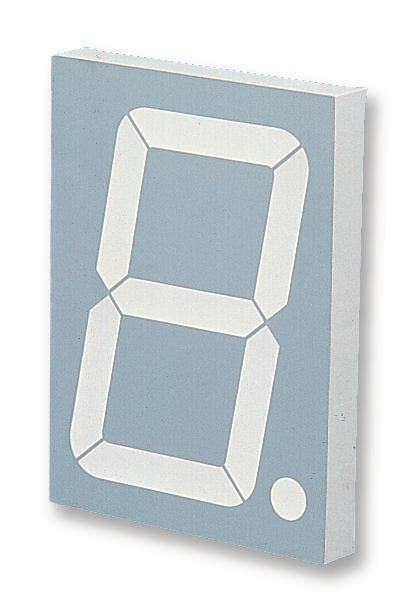

BROADCOM - HDSP-F503 - 7 Segment LED Display, Green, 10 mA, 2.1 V, 3.5 mcd, 1, 10 mm
- LED Colour: Green
- Forward Current If: 10mA
- Forward Voltage: 2.1V
- Luminous Intensity: 3.5mcd
- No. of Digits / Alpha: 1
- Character Size: 10mm
- Common Connection: Common Cathode
- Product Range: -
- SVHC: No SVHC (27-Jun-2018)
- Background Colour: Grey
- Character Type: 8.
- Current If Luminous Intensity: 10mA
- External Depth: 6.36mm
- External Length / Height: 12.9mm
- External Width: 9.79mm
- Forward Current If Max: 10mA
- Forward Voltage VF Max: 2.1V
- Forward Voltage per Segment @ If: 2.1V
- Luminous Intensity per Segment @ If Typ: 3.5mcd
- No. of Characters: 1 Character
- Nom Current If per Segment: 10mA
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +105°C
- PIV Max: 3V
