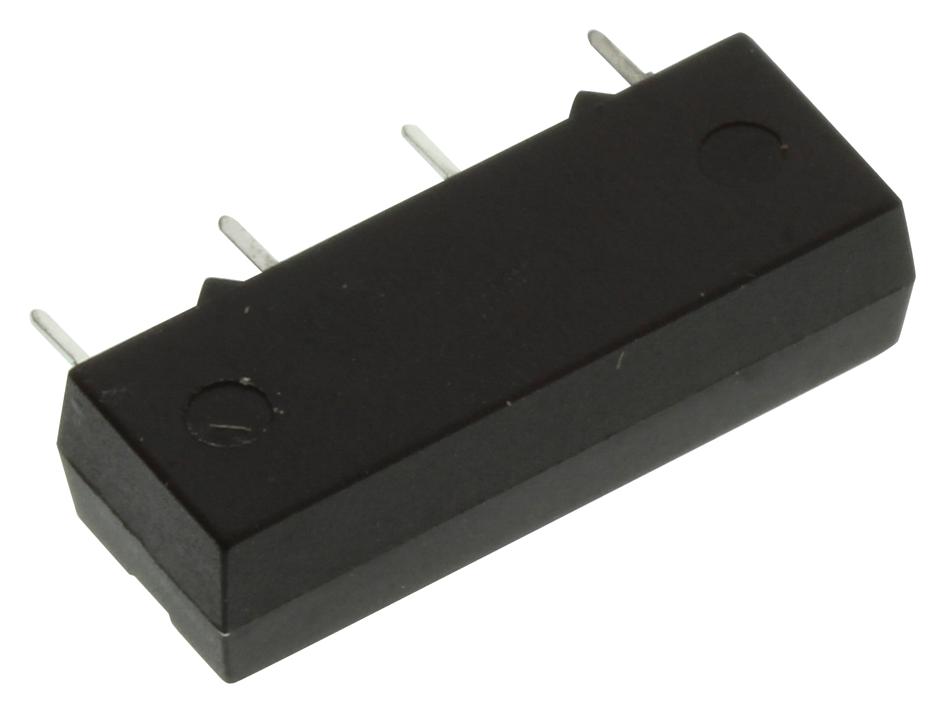

HE3621A0500 Relay, Reed, SPST-NO, 200V, 0.5A, THT LITTELFUSE

LITTELFUSEUGS :HE3621A0500 Code de commande:1608140

Prix:
Prix ​​promotionnel€3,82

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4174 unité)

Documents et téléchargements

description

LITTELFUSE - HE3621A0500 - Reed Relay, SPST-NO, 5 VDC, HE3600, Through Hole, 500 ohm, 500 mA

  • Contact Configuration: SPST-NO
  • Coil Voltage: 5VDC
  • Product Range: HE3600 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 500ohm
  • Switching Current Max: 500mA
  • Switching Voltage Max: 200V
  • Case Material: Epoxy
  • Coil Voltage Max: 14V
  • Coil Voltage VDC Nom: 5V
  • Contact Current DC Max: 500mA
  • Contact Resistance: 0.15ohm
  • Contact Voltage DC Max: 200V
  • Dropout Voltage Vdo: 0.5V
  • External Depth: 19.05mm
  • External Height: 7.45mm
  • External Width: 5.08mm
  • Hold Off Voltage Min: 250V
  • Must Actuate Voltage: 3.75V
  • Must Release Voltage: 0.5V
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 1ms
  • Pull-in Voltage: 3.75
  • Release Time: 1ms
  • Switch Current Max: 500mA
  • Switch Power Max: 10W
