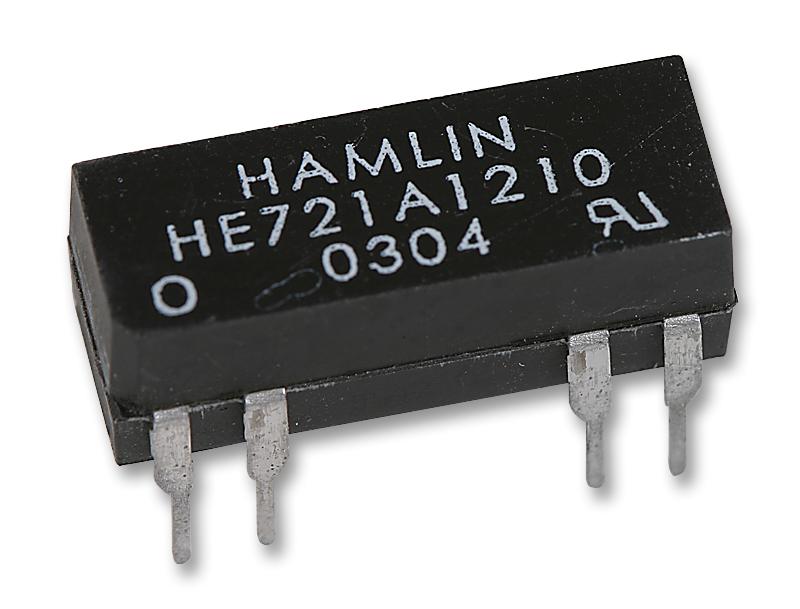

LITTELFUSE - HE721A1210 - Reed Relay, SPST-NO, 12 VDC, HE700, Through Hole, 1 kohm, 500 mA
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Product Range: HE700 Series
- Relay Mounting: Through Hole
- Coil Resistance: 1kohm
- Switching Current Max: 500mA
- Switching Voltage Max: 200VDC
- Coil Voltage Max: 31V
- Coil Voltage Min: 8V
- Coil Voltage VDC Nom: 12V
- Contact Current DC Max: 500mA
- Contact Resistance: 150mohm
- Contact Voltage DC Max: 200V
- Dropout Voltage Vdo: 1V
- External Depth: 20.14mm
- External Height: 7.5mm
- External Length / Height: 7.5mm
- External Width: 7.62mm
- Insulation Resistance: 10000Mohm
- Must Actuate Voltage: 8V
- Must Release Voltage: 1V
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 1ms
- Pull-in Voltage: 8 V
- Release Time: 1ms
- Switch Current Max: 500mA
- Switch Power Max: 10W
