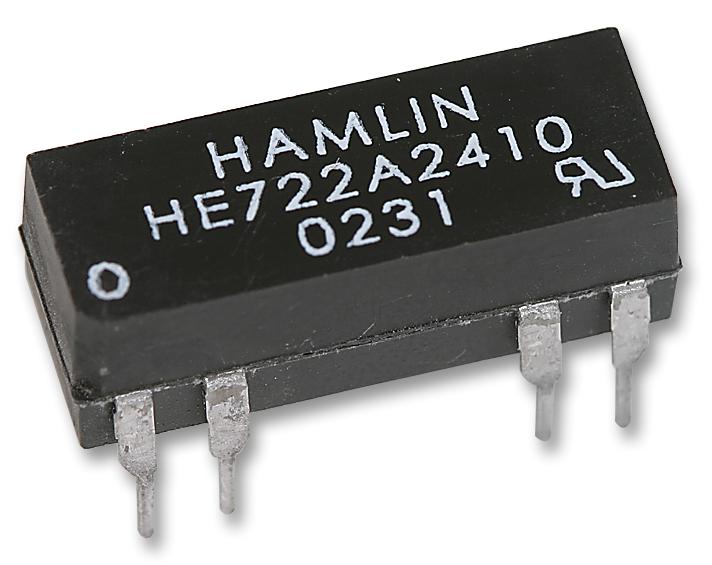

HE722A2410 Relay, Reed, DPST-NO, 200V, 0.5A, THT Hamlin

HAMLINUGS :HE722A2410 Code de commande:9561838

Prix:
Prix ​​promotionnel€5,17

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5509 unité)

Documents et téléchargements

description

LITTELFUSE - HE722A2410 - Reed Relay, DPST-NO, 24 VDC, HE700, Through Hole, 2.15 kohm, 500 mA

  • Contact Configuration: DPST-NO
  • Coil Voltage: 24VDC
  • Product Range: HE700 Series
  • Relay Mounting: Through Hole
  • Coil Resistance: 2.15kohm
  • Switching Current Max: 500mA
  • Switching Voltage Max: 200V
  • Coil Voltage Max: 32V
  • Coil Voltage Min: 16V
  • Coil Voltage VDC Nom: 24V
  • Contact Current DC Max: 500mA
  • Contact Resistance: 0.2ohm
  • Contact Voltage DC Max: 200V
  • Dropout Voltage Vdo: 2V
  • External Depth: 20.14mm
  • External Height: 5.82mm
  • External Length / Height: 19.5mm
  • External Width: 7.24mm
  • Hold Off Voltage Min: 250V
  • Insulation Resistance: 10000Mohm
  • Lead Spacing: 7.62mm
  • Must Actuate Voltage: 16V
  • Must Release Voltage: 2V
  • No. of Pins: 8Pins
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 0.5ms
  • Pull-in Voltage: 16 V
  • Release Time: 0.5ms
  • Row Pitch: 2.54mm
  • Switch Current Max: 500mA
  • Switch Power Max: 10W
