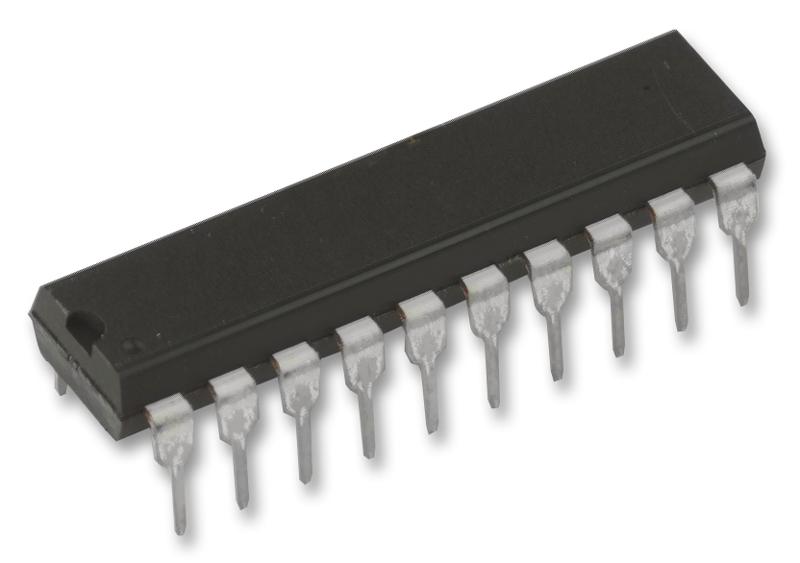

RENESAS - HIP4081AIPZ - Gate Driver, 4 Channels, Full Bridge, MOSFET, 20 Pins, DIP, Non-Inverting
- Driver Configuration: Full Bridge
- Peak Output Current: 2.6A
- Supply Voltage Min: 9.5V
- Supply Voltage Max: 15V
- Driver Case Style: DIP
- No. of Pins: 20Pins
- Input Delay: 45ns
- Output Delay: 30ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: To Be Advised
- MSL: -
- SVHC: No SVHC (07-Jul-2017)
- Base Number: 4081
- Device Type: Power
- IC Generic Number: 4081
- Logic Function Number: 4081
- Module Configuration: Full Bridge
- No. of Outputs: 4Outputs
- Operating Temperature Range: -40°C to +85°C
- Output Current: 2.5A
- Output Sink Current Min: 1300mA
- Output Source Current Min: 1400mA
- Output Voltage: 86.3V
- Supply Voltage Range: 9.5V to 15V
- Termination Type: Through Hole
