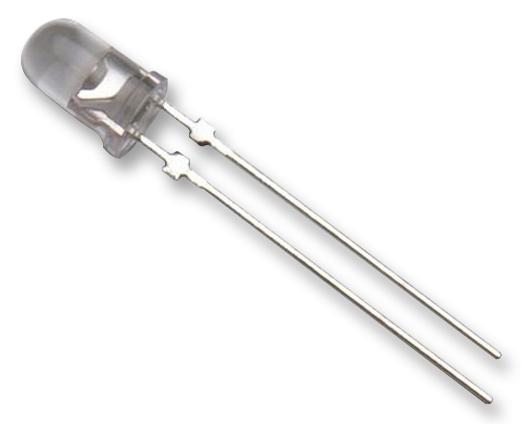

BROADCOM - HLMP-EG1B-Z10DD - LED, Red, Through Hole, T-1 3/4 (5mm), 20 mA, 2.1 V, 630 nm
- LED Colour: Red
- LED Mounting: Through Hole
- LED Case Size: T-1 3/4 (5mm)
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- Wavelength Typ: 630nm
- Luminous Intensity: 21cd
- Viewing Angle: 15°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Bulb Size: T-1 3/4 (5mm)
- Dominant Wavelength: 626nm
- Dominant Wavelength Typ: 626nm
- Forward Voltage VF Max: 2.4V
- LED / Lamp Size: 5mm / T-1 3/4
- LED Type: Standard
- Luminous Intensity Max: 21000mcd
- Luminous Intensity Min: 12000mcd
- Luminous Intensity Typ: 21000mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +100°C
