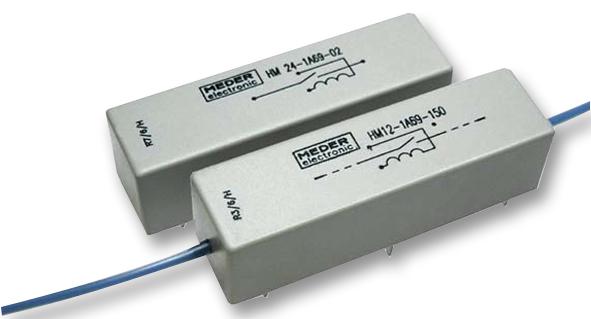

STANDEXMEDER - HM12-1A83-02 - Reed Relay, SPST-NO, 12 VDC, HM, Through Hole, 250 ohm, 3 A
- Contact Configuration: SPST-NO
- Coil Voltage: 12VDC
- Product Range: HM Series
- Relay Mounting: Through Hole
- Coil Resistance: 250ohm
- Switching Current Max: 3A
- Switching Voltage Max: 7.5kV
- SVHC: No SVHC (15-Jun-2015)
- Coil Voltage Max: 16VDC
- Coil Voltage VDC Nom: 12V
- Contact Current AC Max: 3A
- Contact Current DC Max: 3A
- Contact Resistance: 150mohm
- Contact Voltage AC Max: 7.5kV
- Contact Voltage DC Max: 7.5kV
- External Depth: 19mm
- External Height: 19.8mm
- External Length / Height: 19.8mm
- External Width: 68mm
- No. of Pins: 4Pins
- Operating Temperature Max: 70°C
- Operating Temperature Min: -20°C
- Operating Time: 3ms
- Release Time: 1.5ms
- Switch Current Max: 3A
- Switch Power Max: 50W
- Switching Power Max: 50W
