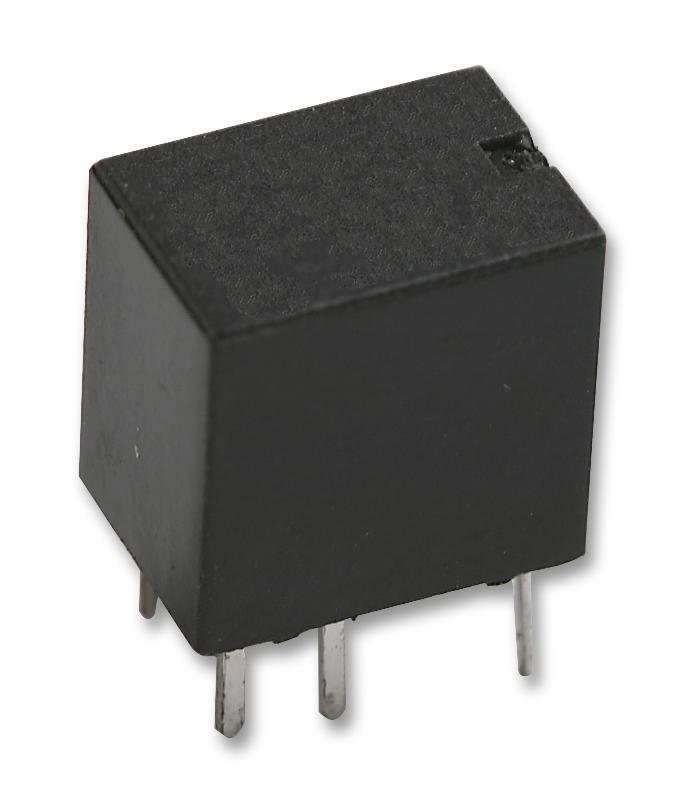

MULTICOMP PRO - HRAH-S-DC24V-C - Signal Relay, 24 VDC, SPDT, 1 A, HRA, Through Hole
- Coil Voltage: 24VDC
- Contact Configuration: SPDT
- Contact Current: 1A
- Product Range: HRA Series
- Relay Mounting: Through Hole
- Coil Type: -
- Relay Terminals: Solder
- Contact Voltage VAC: 120V
- Contact Voltage VDC: 24V
- Contact Material: Silver Alloy
- Coil Resistance: 1.515kohm
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 1A
- Contact Current DC Max: 1A
- Contact Current Max: 2A
- Contact Resistance: 50mohm
- Contact Voltage AC Max: 120V
- Contact Voltage AC Nom: 120V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 24V
- DC Coil Power: 380mW
- Dielectric Strength VDC: 500VAC
- External Depth: 7.3mm
- External Height: 9.9mm
- External Length / Height: 9.9mm
- External Width: 10.3mm
- Insulation Resistance: 100Mohm
- Mechanical Life: 10,000,000 Operations
- No. of Mechanical Operations: 10000000
- Nom Operating Power: 380mW
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Operating Time: 6ms
- Relay Type: Subminiature
- Release Time: 4ms
- Weight: 1.7g
