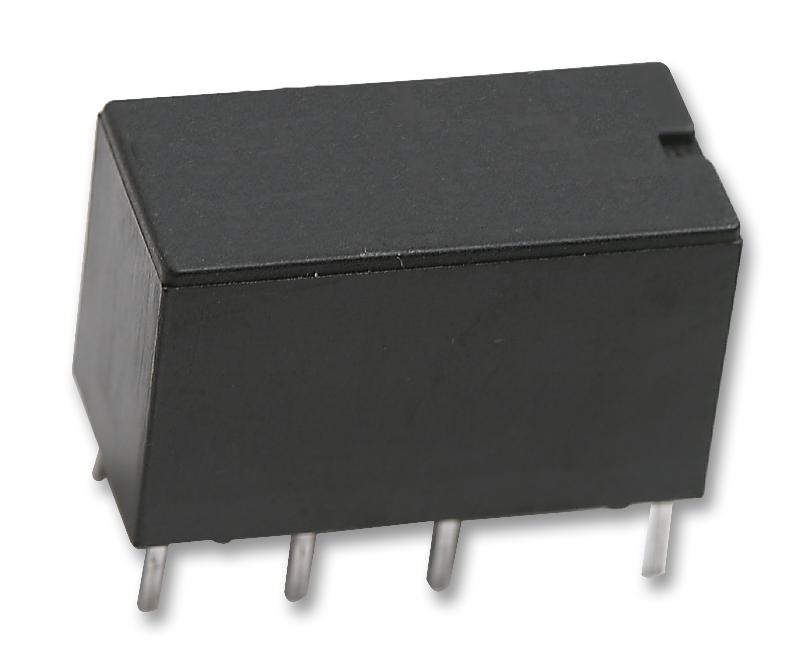

MULTICOMP PRO - HRS2H-S DC12V - Signal Relay, 12 VDC, DPDT, 2 A, HRS2, Through Hole
- Coil Voltage: 12VDC
- Contact Configuration: DPDT
- Contact Current: 2A
- Product Range: HRS2 Series
- Relay Mounting: Through Hole
- Coil Type: -
- Relay Terminals: Solder
- Contact Voltage VAC: 120V
- Contact Voltage VDC: 24V
- Contact Material: Silver Alloy
- Coil Resistance: 320ohm
- Coil Power Continuous: 450mW
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 1A
- Contact Voltage AC Nom: 120V
- Contact Voltage DC Nom: 24V
- External Depth: 9.9mm
- External Height: 11.4mm
- External Width: 20.5mm
