HRS2H-S DC24V Relay, Signal, DPDT, 120VAC, 24Vdc, 2A multicomp Pro

MULTICOMP PROUGS :HRS2H-S DC24V Code de commande:9480226

Prix:
Prix ​​promotionnel€4,95

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1625 unité)

Documents et téléchargements

description

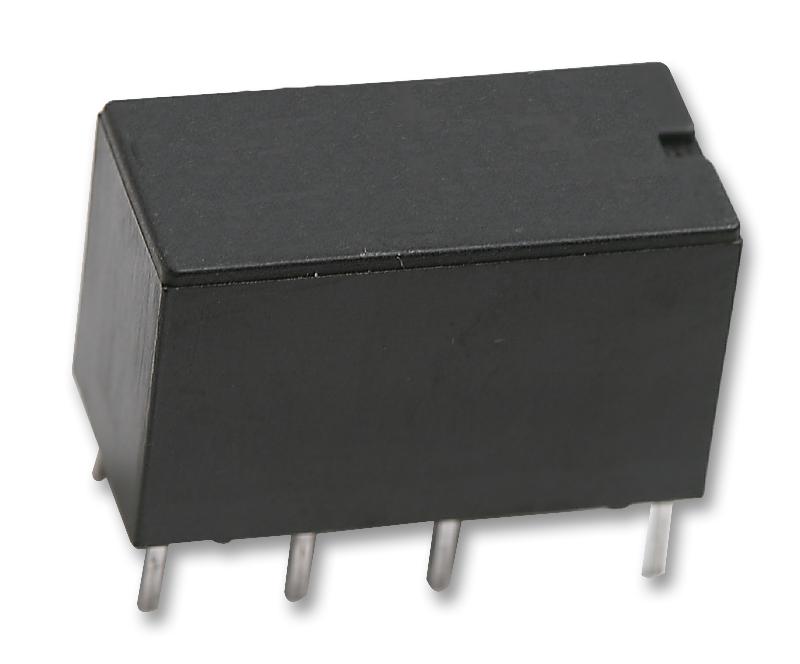

MULTICOMP PRO - HRS2H-S DC24V - Signal Relay, 24 VDC, DPDT, 2 A, HRS2, Through Hole

  • Coil Voltage: 24VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: HRS2 Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Relay Terminals: Solder
  • Contact Voltage VAC: 120V
  • Contact Voltage VDC: 24V
  • Contact Material: Silver Alloy
  • Coil Resistance: 1.28kohm
  • Coil Power Continuous: 450mW
  • Coil Voltage VDC Nom: 24V
  • Contact Current Max: 1A
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Nom: 24V
  • External Depth: 9.9mm
  • External Height: 11.4mm
  • External Width: 20.5mm
