HRS2H-S DC9V Relay, Signal, DPDT, 120VAC, 24Vdc, 2A multicomp Pro

MULTICOMP PROUGS :HRS2H-S DC9V Code de commande:9480200

Prix:
Prix ​​promotionnel€4,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (498 unité)

Documents et téléchargements

description

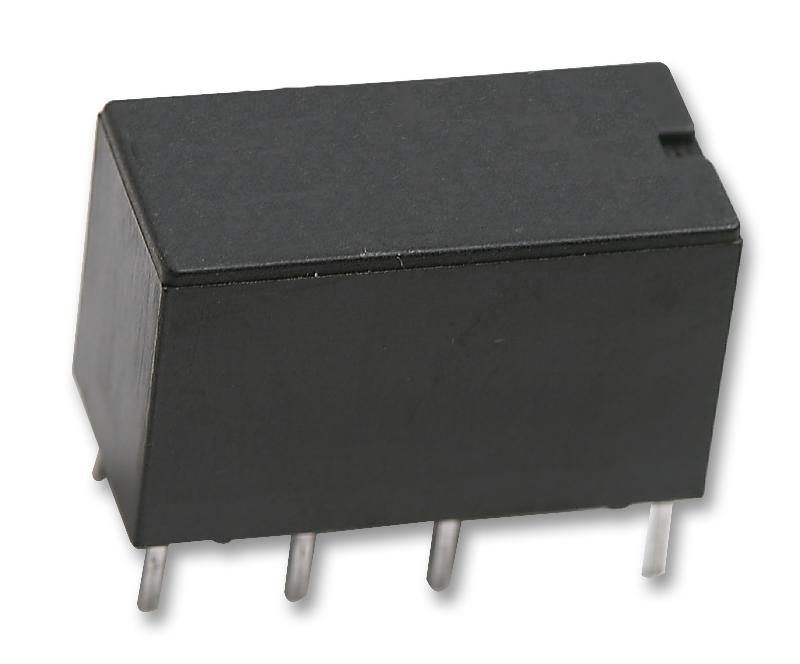

MULTICOMP PRO - HRS2H-S DC9V - Signal Relay, 9 VDC, DPDT, 2 A, HRS2, Through Hole

  • Coil Voltage: 9VDC
  • Contact Configuration: DPDT
  • Contact Current: 2A
  • Product Range: HRS2 Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Relay Terminals: Solder
  • Contact Voltage VAC: 120V
  • Contact Voltage VDC: 24V
  • Contact Material: Silver Alloy
  • Coil Resistance: 180ohm
  • Approval Bodies: CSA, UL
  • Coil Voltage VDC Nom: 9V
  • Contact Current AC Max: 1A
  • Contact Current DC Max: 1A
  • Contact Current Max: 1A
  • Contact Voltage AC Max: 120V
  • Contact Voltage AC Nom: 120V
  • Contact Voltage DC Max: 24V
  • Contact Voltage DC Nom: 24V
  • DC Coil Power: 200mW
  • Dielectric Strength VDC: 1000V
  • External Depth: 12mm
  • External Height: 21.2mm
  • External Length / Height: 21.2mm
  • External Width: 10.8mm
  • Nom Operating Power: 200mW
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Operating Time: 6ms
  • Relay Type: PCB
  • Release Time: 4ms
