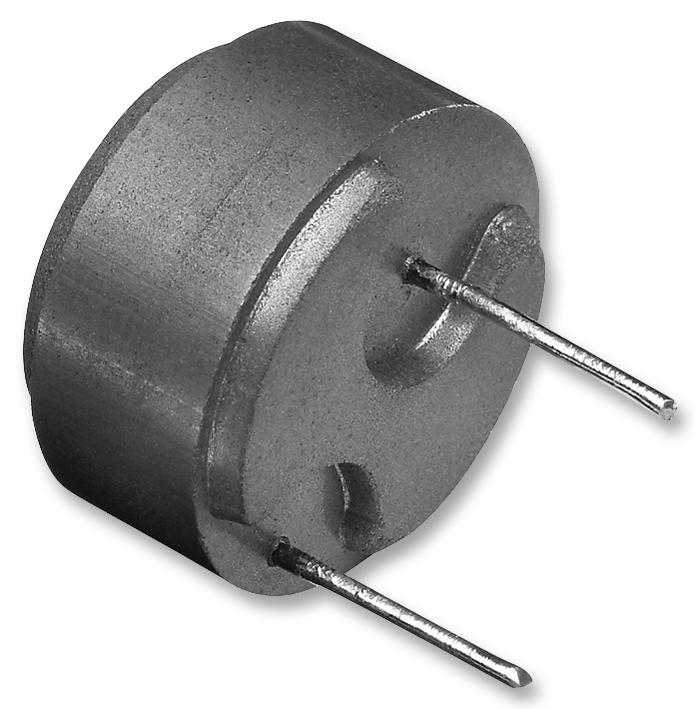

VISHAY - IHTH0750JZEB220M5A - Inductor, IHTH-0750JZ-5A Series, 22 µH, 13 A, 12 A, 0.013 ohm, ± 20%
- Product Range: IHTH-0750JZ-5A Series
- Inductance: 22µH
- RMS Current (Irms): 13A
- Saturation Current (Isat): 12A
- DC Resistance Max: 0.013ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (27-Jun-2018)
- Body Diameter: 20.47mm
- Core Material: Iron Powder
- DC Current Rating: 11.5A
- External Length / Height: 9.52mm
- Inductance Measurement Frequency: 100kHz
- Inductor Case Style: Radial Leaded
- Inductor Type: High Current
- Lead Diameter: 1.19mm
- Lead Length: 4.19mm
- Lead Spacing: 11.43mm
- No. of Pins: 2Pins
- Operating Temperature Max: 155°C
- Operating Temperature Min: -55°C
- Resonant Frequency: 1MHz
