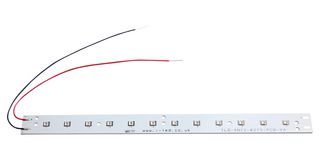

ILS-XO12-S300-0280-SC201-W2. - UV Emitter Module, 12 Chip, 320 to 320 nm, 27.3 W, 90° (+/- 45°), Rectangular PCB, M3 Heatsink Mount - INTELLIGENT LED SOLUTIONS
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
ILS-XO12-S300-0280-SC201-W2. - UV Emitter Module, 12 Chip, 320 to 320 nm, 27.3 W, 90° (+/- 45°), Rectangular PCB, M3 Heatsink Mount - INTELLIGENT LED SOLUTIONS

ILS-XO12-S300-0280-SC201-W2. - UV Emitter Module, 12 Chip, 320 to 320 nm, 27.3 W, 90° (+/- 45°), Rectangular PCB, M3 Heatsink Mount - INTELLIGENT LED SOLUTIONS

INTELLIGENT LED SOLUTIONSUGS :ILS-XO12-S300-0280-SC201-W2. Code de commande:3594547
Prix:
€1.701,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seul 1 produit disponible

Documenten en downloads

Technical Data Sheet (653.76KB) EN

description

  • Forward Current per Chip: 350mA
  • Forward Voltage Range: 20V to 30V
  • Minimum Radiometric Power: 720mW
  • Operating Temperature Max: 60°C
  • Peak Wavelength: 300 to 320nm
  • Product Range: UV N3535 12 VIOLET Strip Series
  • Radiance Angle: ± 45° (90°)
  • Typical Wattage: 27.3W
  • UV Emitter Module Leads: 200mm Red & Black
  • UV Emitter Module Mounting: Strip PCB, M3 Holes - Heatsink Mount
  • UV Emitter Module Type: 12 Chip UV Module
