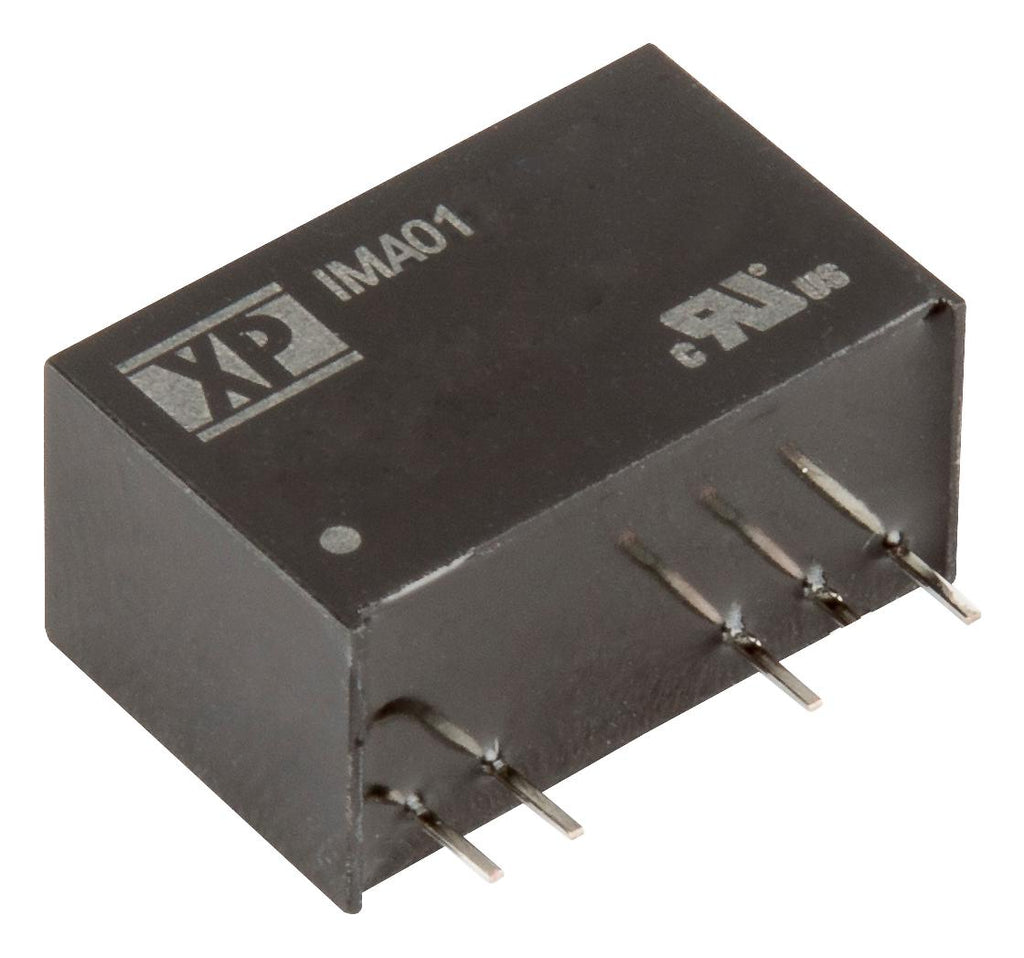

XP POWER - IMA0105S12 - Isolated Through Hole DC/DC Converter, Medical, 1:1, 1 W, 1 Output, 12 V, 83.3 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 83.3mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: IMA01 Series
- Input Voltage DC Min: 4.5V
- Input Voltage DC Max: 5.5V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 19.5mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA, IEC, UL
