IMC06GR Relay, Signal, SPDT, 30Vdc, 2A Te Connectivity

TE CONNECTIVITYUGS :IMC06GR Code de commande:1770605

Prix:
Prix ​​promotionnel€6,67

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2000 unité)

Documents et téléchargements

description

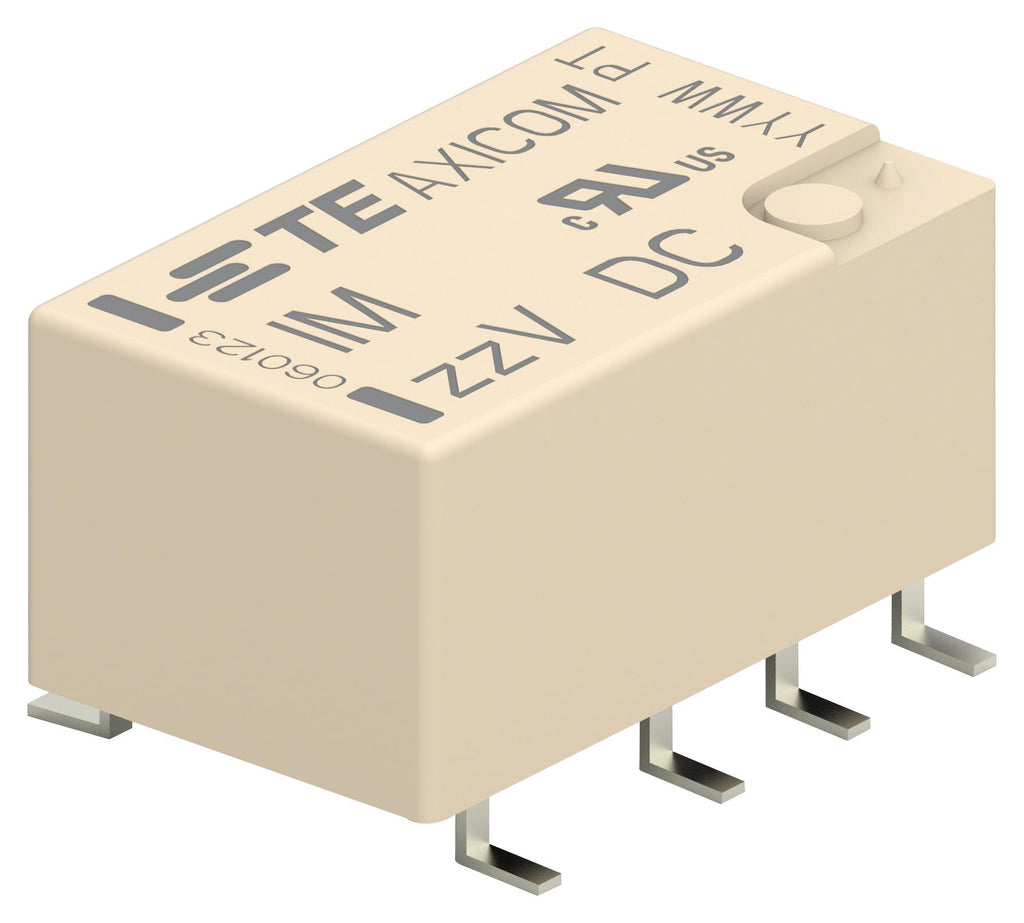

TE CONNECTIVITY - 1462042-3 - Signal Relay, 12 VDC, SPDT, 4 A, IM, Surface Mount, Non Latching

  • Coil Voltage: 12VDC
  • Contact Configuration: SPDT
  • Contact Current: 4A
  • Product Range: IM Series
  • Relay Mounting: SMD
  • Coil Type: Non Latching
  • Relay Terminals: Solder
  • Contact Voltage VAC: -
  • Contact Voltage VDC: 30V
  • Contact Material: Palladium Ruthenium
  • Coil Resistance: 1.029kohm
  • Coil Power Continuous: 140mW
  • Coil Voltage VDC Nom: 12V
  • Contact Current AC Max: 2A
  • Contact Current DC Max: 5A
  • Contact Current Max: 2A
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 220V
  • Contact Voltage DC Nom: 220V
  • External Depth: 10mm
  • External Height: 5.65mm
  • External Length / Height: 5.65mm
  • External Width: 6mm
  • Operating Temperature Max: 85°C
  • Operating Voltage Range: 9V to 28.9V
  • Relay Type: Signal
  • Type: Non-Latching
