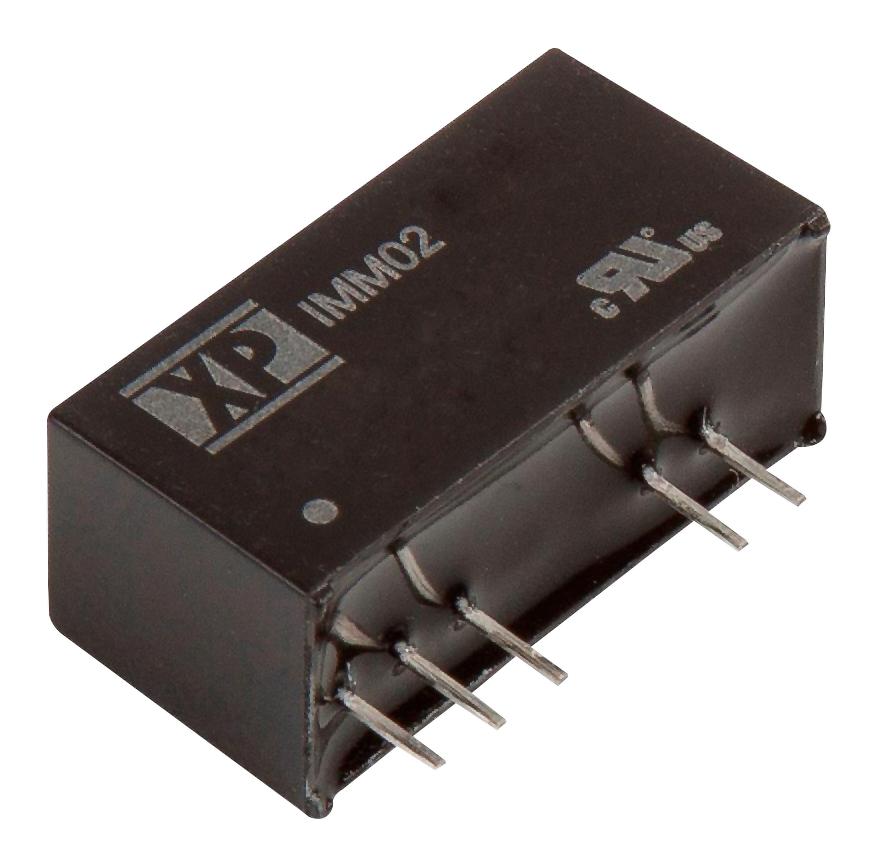

XP POWER - IMM0205D15 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 2 W, 2 Output, 15 V, 66 mA
- No. of Outputs: 2 Output
- Output Power Max: 2W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 66mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 66mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: IMM02 Series
- Input Voltage DC Min: 4.5V
- Input Voltage DC Max: 9V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.85mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA, IEC, UL
