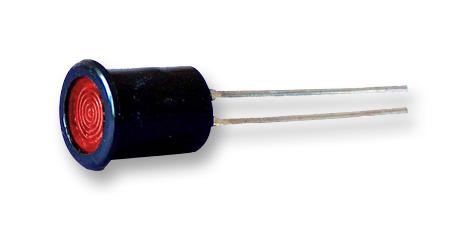

CAMDENBOSS - IND514113-LED-T/RD - LED Panel Mount Indicator, Red, 8 mm, Not Rated
- LED Colour: Red
- Operating Voltage: -
- Mounting Hole Dia: 8mm
- Forward Current If: -
- Luminous Intensity: -
- IP / NEMA Rating: Not Rated
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: BS, EN
- Bezel Depth: 1mm
- Bezel Diameter: 9.5mm
- Bulb Size: 5mm
- External Diameter: 9.5mm
- External Length / Height: 10mm
- Fixing Hole Diameter: 8mm
- Forward Current If(AV): 15mA
- Forward Voltage VF Max: 2V
- LED / Lamp Size: 5mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: 0°C
- Operating Temperature Range: 0°C to +85°C
- PIV Max: 3V
- Panel Thickness Max: 3.5mm
- Power Dissipation Pd: 225mW
- Voltage Vf Typ: 2V
