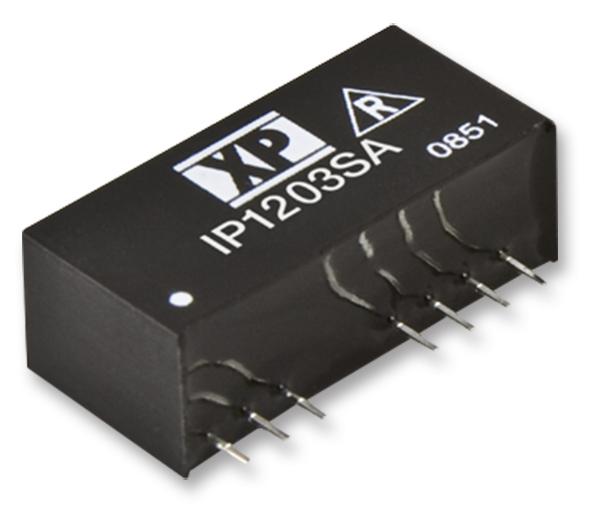

XP POWER - IP1203SA - Isolated Through Hole DC/DC Converter, Regulated, ITE, 4:1, 3 W, 1 Output, 3.3 V, 700 mA
- DC/DC CONVERTER, 3W, 4: 1 I/P3.3V O/P
- No. of Outputs: 1 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 3.3V
- Output Current - Output 1: 700mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: -
- Input Voltage DC Min: 4.5V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 11.1mm
- Depth: 21.85mm
- SVHC: No SVHC (15-Jan-2018)
- Isolation Voltage: 1.6kV
- No. of Outputs: 1Outputs
- Power Rating: 3W
- Supply Voltage: 12V
