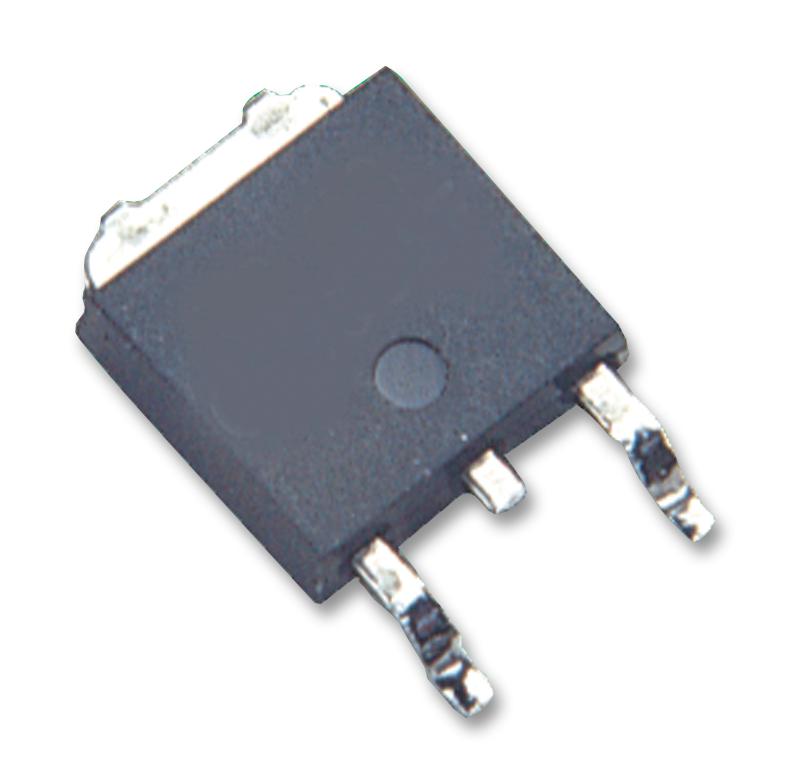

INFINEON - IPB015N04NGATMA1 - Power MOSFET, N Channel, 40 V, 120 A, 0.0012 ohm, TO-263 (D2PAK), Surface Mount
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 120A
- Drain Source Voltage Vds: 40V
- On Resistance Rds(on): 0.0012ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 10V
- Power Dissipation Pd: 250W
- Transistor Case Style: TO-263
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Current Id Max: 120A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Transistor Type: Power MOSFET
- Voltage Vgs Max: 20V
