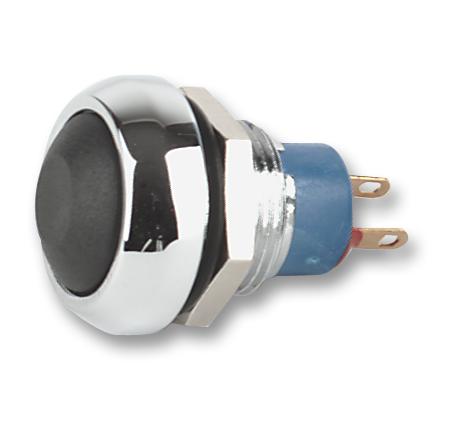

APEM - IPR3SAD3101 - Industrial Pushbutton Switch, IP, 13.6 mm, SPST-NO, Momentary, Round, Green
- Switch Operation: Momentary
- Pushbutton Actuator Style: Round
- Contact Configuration: SPST-NO
- Product Range: IP Series
- Switch Terminals: Solder Lug
- IP Rating: IP67, IP69K
- Contact Current Max: 5A
- Contact Voltage AC Nom: -
- Contact Voltage DC Nom: 28V
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Round
- Actuator / Cap Colour: Green
- Behind Panel Depth: 13.2mm
- Colour: Green
- Contact Current @ Contact Voltage AC Max: 2A
- Contact Current AC Max: 500mA
- Contact Current DC Max: 5A
- Contact Resistance: 50mohm
- Contact Voltage VAC: 48V
- Contact Voltage VDC: 28V
- Dielectric Strength VDC: 1500VAC
- External Depth: 18.2mm
- External Diameter: 17.5mm
- External Length / Height: 32.6mm
- Illumination Colour: Non-illuminated
- Insulation Resistance: 1Gohm
- No. of Electrical Operations: 500000
- No. of Mechanical Operations: 1000000
- Operating Force: 3N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Panel Cutout Diameter: 13.6mm
- Panel Thickness Max: 5.5mm
- Panel Thickness Min: 1.5mm
