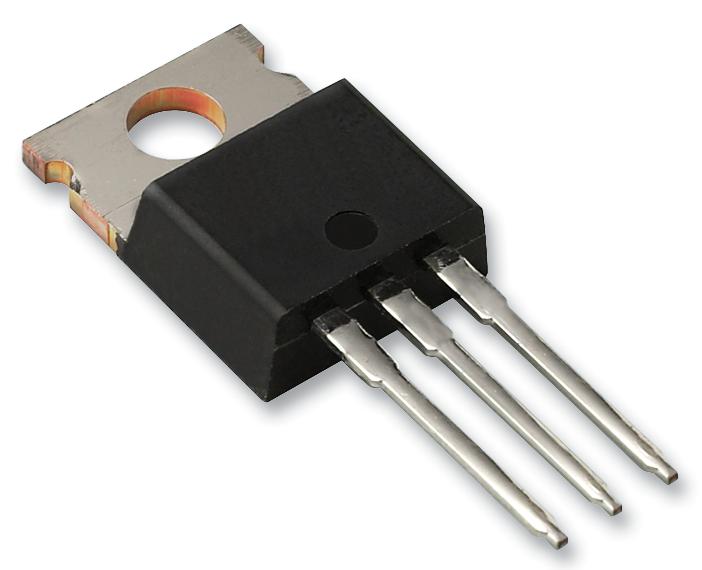

INFINEON - IRF9540NPBF - Power MOSFET, P Channel, 100 V, 23 A, 0.117 ohm, TO-220AB, Through Hole
- Transistor Polarity: P Channel
- Continuous Drain Current Id: -23A
- Drain Source Voltage Vds: -100V
- On Resistance Rds(on): 0.117ohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs: -4V
- Power Dissipation Pd: 140W
- Transistor Case Style: TO-220AB
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Current Temperature: 25°C
- Device Marking: IRF9540N
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 1.1°C/W
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Pin Configuration: a
- Pin Format: 1 g
- Pulse Current Idm: 76A
- Termination Type: Through Hole
- Voltage Vds Typ: -100V
- Voltage Vgs Max: -4V
- Voltage Vgs Rds on Measurement: -10V
- Voltage Vgs th Max: -4V
