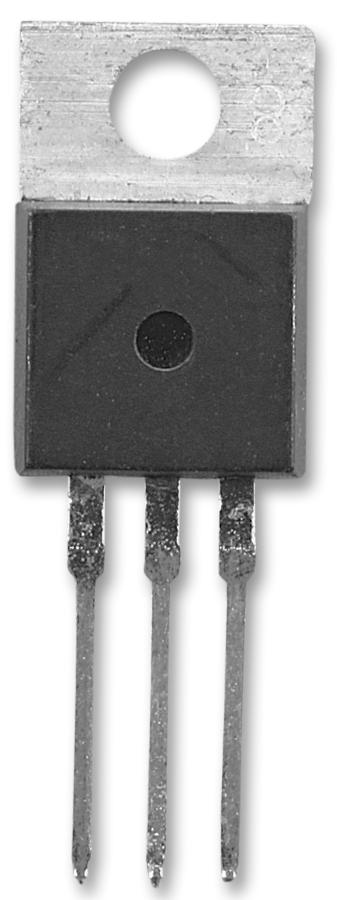

VISHAY - IRFZ40PBF - Power MOSFET, N Channel, 60 V, 35 A, 0.028 ohm, TO-220AB, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 35A
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.028ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 4V
- Power Dissipation Pd: 150W
- Transistor Case Style: TO-220AB
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- Current Id Max: 50A
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Termination Type: Through Hole
- Voltage Vds Typ: 50V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
