Push Button
IRR3F432 SWITCH, NO, ROUND, GRN, IP67 APEM
Survolez l'image pour zoomer Cliquez sur l'image pour zoomer
IRR3F432 SWITCH, NO, ROUND, GRN, IP67 APEM

IRR3F432 Switch, NO, Round, GRN, IP67 Apem

APEMUGS :IRR3F432 Code de commande:1714139
Prix:
€36,12

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

Fiche produit

description

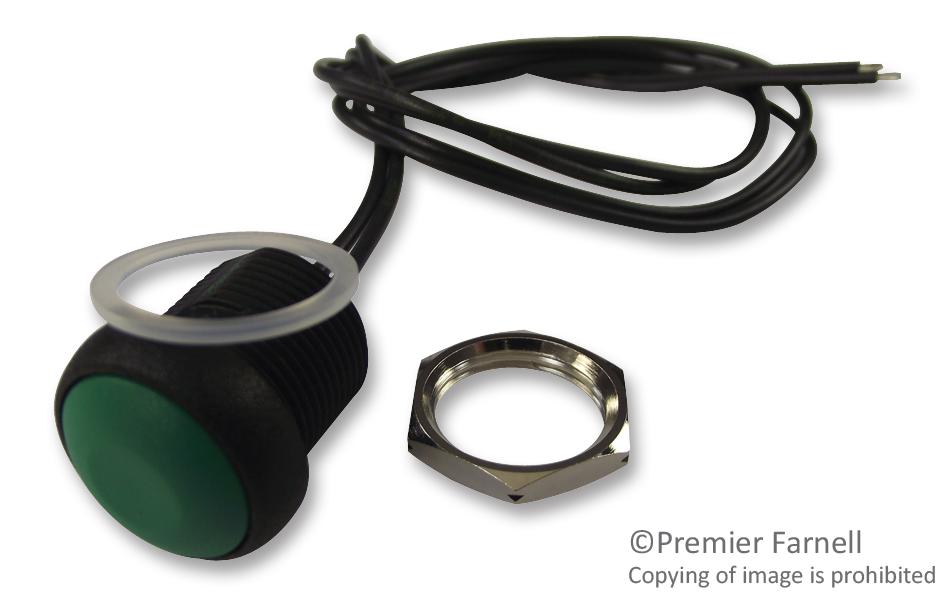

APEM - IRR3F432 - Industrial Pushbutton Switch, IR, 16.2 mm, SPST-NO, Momentary, Round, Green

  • Switch Operation: Momentary
  • Contact Configuration: SPST-NO
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 48V
  • Contact Current Max: 200mA
  • Switch Terminals: Wire Leaded
  • Product Range: IR Series
  • SVHC: No SVHC (15-Jan-2018)
  • Actuation Type: Round
  • Actuator / Cap Colour: Green
  • Bush Diameter: 16mm
  • Contact Current AC Max: 200mA
  • Contact Current DC Max: 200mA
  • Contact Resistance: 100mohm
  • Contact Voltage VAC: 250V
  • Contact Voltage VDC: 48V
  • Dielectric Strength VDC: 1500V
  • IP Rating: IP67
  • Illumination Colour: Non-illuminated
  • Insulation Resistance: 1Gohm
  • No. of Electrical Operations: 500000
  • No. of Mechanical Operations: 1000000
  • Operating Force Max: 5N
  • Operating Force Min: 2N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Panel Cutout Diameter: 16.2mm
  • Panel Thickness: 8mm
  • Pushbutton Actuator Style: Round
  • Pushbutton Switch Type: Industrial
  • Switch Mounting: Panel
  • Travel: 1.7mm
