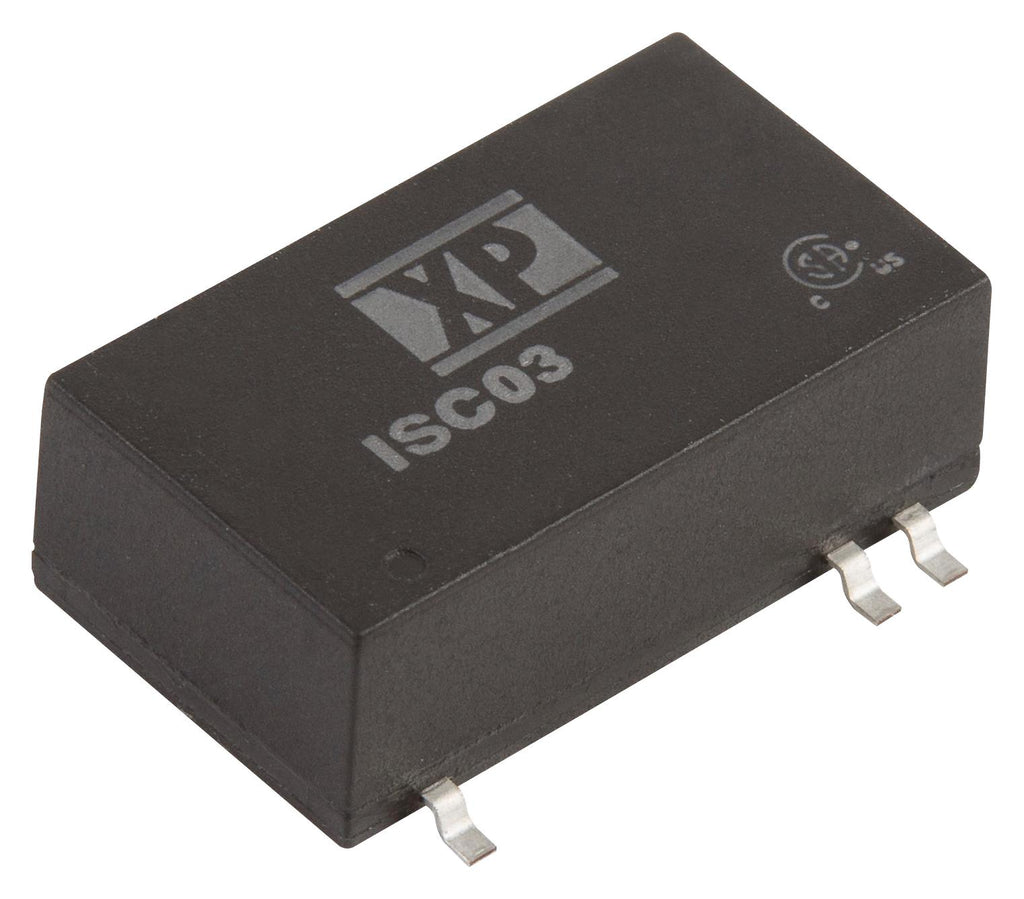

XP POWER - ISC0324D15 - Isolated Surface Mount DC/DC Converter, ITE, 4:1, 3 W, 2 Output, 15 V, 100 mA
- No. of Outputs: 2 Output
- Output Power Max: 3W
- Output Voltage - Output 1: 15V
- Output Current - Output 1: 100mA
- Output Voltage - Output 2: -15V
- Output Current - Output 2: 100mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: ISC03 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Surface Mount Device
- Width: 13.7mm
- Height: 8mm
- Depth: 24mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CB, IEC, UL
