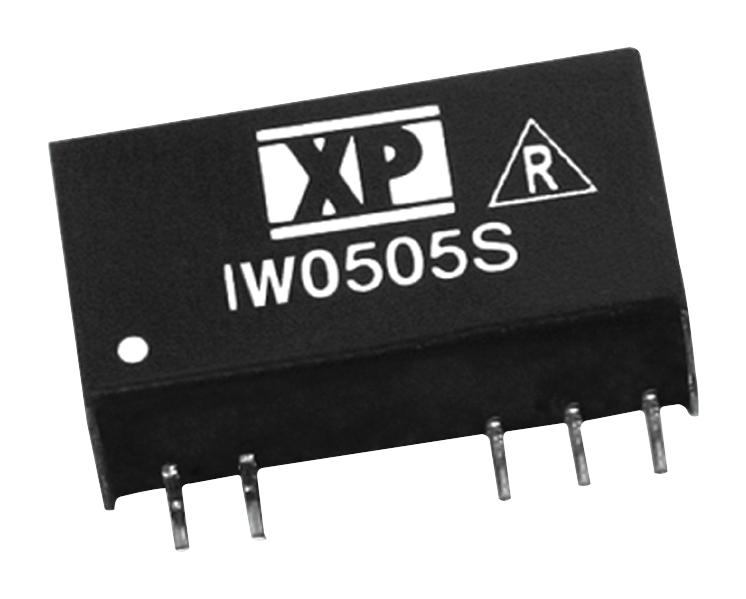

XP POWER - IW4824SA - Isolated Through Hole DC/DC Converter, ITE, 2:1, 1 W, 1 Output, 24 V, 42 mA
- No. of Outputs: 1 Output
- Output Power Max: 1W
- Output Voltage - Output 1: 24V
- Output Current - Output 1: 42mA
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: IW Series
- Input Voltage DC Min: 36V
- Input Voltage DC Max: 72V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: SIP
- DC / DC Converter Mounting: Through Hole
- Width: 9.2mm
- Height: 10.6mm
- Depth: 21.85mm
- SVHC: No SVHC (15-Jan-2018)
