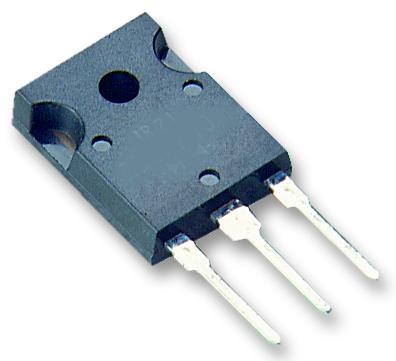

IXYS SEMICONDUCTOR - IXFH120N15P - Power MOSFET, PolarFET, N Channel, 150 V, 120 A, 0.016 ohm, TO-247, Through Hole
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 120A
- Drain Source Voltage Vds: 150V
- On Resistance Rds(on): 0.016ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 5V
- Power Dissipation Pd: 600W
- Transistor Case Style: TO-247
- No. of Pins: 3Pins
- Operating Temperature Max: 175°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (12-Jan-2017)
- Capacitance Ciss Typ: 4900pF
- Current Id Max: 120A
- Junction to Case Thermal Resistance A: 0.25°C/W
- N-channel Gate Charge: 150nC
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +175°C
- Reverse Recovery Time trr Max: 200ns
- Termination Type: Through Hole
- Voltage Vds Typ: 150V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
