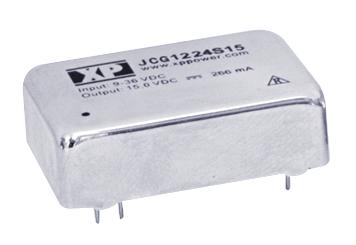

XP POWER - JCG1212S05 - Isolated Through Hole DC/DC Converter, 2:1 Input, ITE, 2:1, 12 W, 1 Output, 5 V, 2.4 A
- No. of Outputs: 1 Output
- Output Power Max: 12W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 2.4A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JCG Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.32mm
- Height: 10.16mm
- Depth: 31.75mm
- SVHC: No SVHC (15-Jan-2018)
- Efficiency: 89%
- External Depth: 20.32mm
- External Length / Height: 10.4mm
- External Width: 31.75mm
- Isolation Voltage: 1.6kV
- No. of Outputs: 1Outputs
- Operating Temperature Max: 100°C
- Operating Temperature Min: -40°C
- Output Ripple Voltage pk-pk: 85mV
- Power Rating: 12W
- Supply Voltage: 12V
- Weight: 20g
