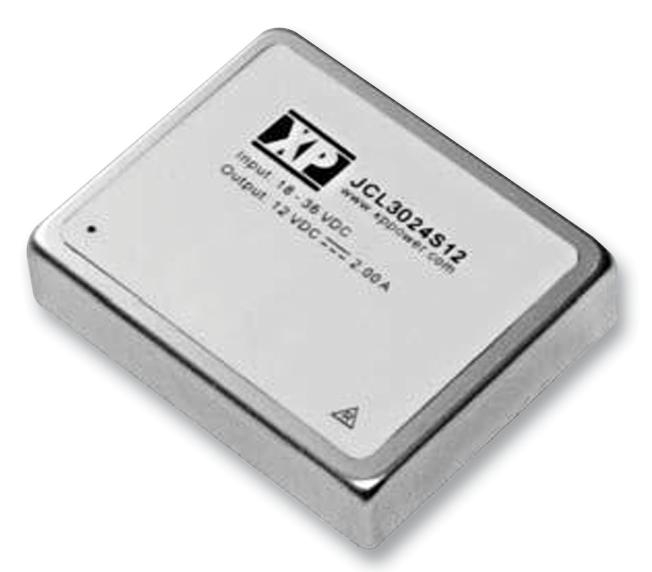

JCL3048D12 Converter, DC/DC, 30W, +/-12V XP Power

XP POWERUGS :JCL3048D12 Code de commande:1637970

Prix:
Prix ​​promotionnel€112,48

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (17 unité)

Documents et téléchargements

description

XP POWER - JCL3048D12 - Isolated Through Hole DC/DC Converter, 2:1 Input, ITE, 2:1, 30 W, 2 Output, 12 V, 1.25 A

  • No. of Outputs: 2 Output
  • Output Power Max: 30W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 1.25A
  • Output Voltage - Output 2: -12V
  • Output Current - Output 2: 1.25A
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: -
  • Input Voltage DC Min: 36V
  • Input Voltage DC Max: 75V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: DIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 40.64mm
  • Height: 10.2mm
  • Depth: 50.8mm
  • SVHC: No SVHC (15-Jan-2018)
  • Efficiency: 91%
  • External Depth: 40.64mm
  • External Length / Height: 11.43mm
  • External Width: 50.8mm
  • Isolation Voltage: 1.5kV
  • No. of Outputs: 2Outputs
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Output Current - Max: -1.25A
  • Output Ripple Voltage pk-pk: 75mV
  • Output Voltage +: 12V
  • Output Voltage -: -12V
  • Power Rating: 30W
  • Supply Voltage: 48V
  • Weight: 48g
