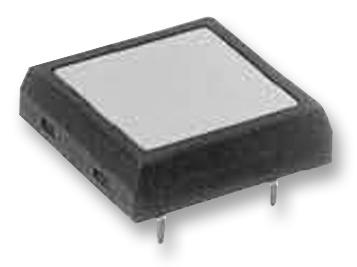

JF15SP1C Tactile Switch, Square, Red NKK Switches

NKK SWITCHESUGS :JF15SP1C Code de commande:1524339

Prix:
Prix ​​promotionnel€8,84

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (45 unité)

Documents et téléchargements

description

NKK SWITCHES - JF15SP1C - Tactile Switch, JF, Top Actuated, Through Hole, Square Button, 300 gf, 50mA at 24VDC

  • Product Range: JF Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: Through Hole
  • Actuator Style: Square Button
  • Actuating Force: 300gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 17.7mm x 17.7mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Actuator / Cap Colour: Red
  • Bezel Height: 3mm
  • Body Width: 14mm
  • Colour: Red
  • Contact Configuration: SPST
  • Contact Current DC: 50mA
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance Max: 50mohm
  • Contact Voltage DC Max: 24V
  • Contact Voltage DC Nom: 24V
  • External Depth: 17.7mm
  • External Width: 17.7mm
  • Height Max: 5mm
  • Insulation Resistance: 500Mohm
  • Insulation Resistance Voltage: 250VDC
  • Lead Spacing: 12.7mm
  • Lens Depth: 14mm
  • No. of Electrical Operations: 500000
  • No. of Mechanical Operations: 500000
  • Operating Force: 3N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Switch Operation: Off-(On)
  • Switch Terminals: Solder
  • Travel: 0.4mm

Frais de port prévus

Tu pourrais aussi aimer

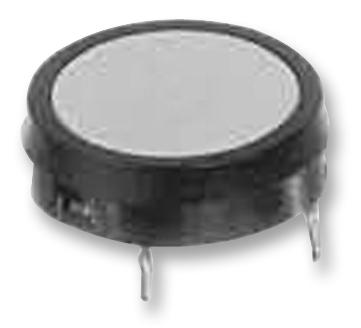

JF15CP2C TACTILE SWITCH, ROUND, RED NKK SWITCHES
