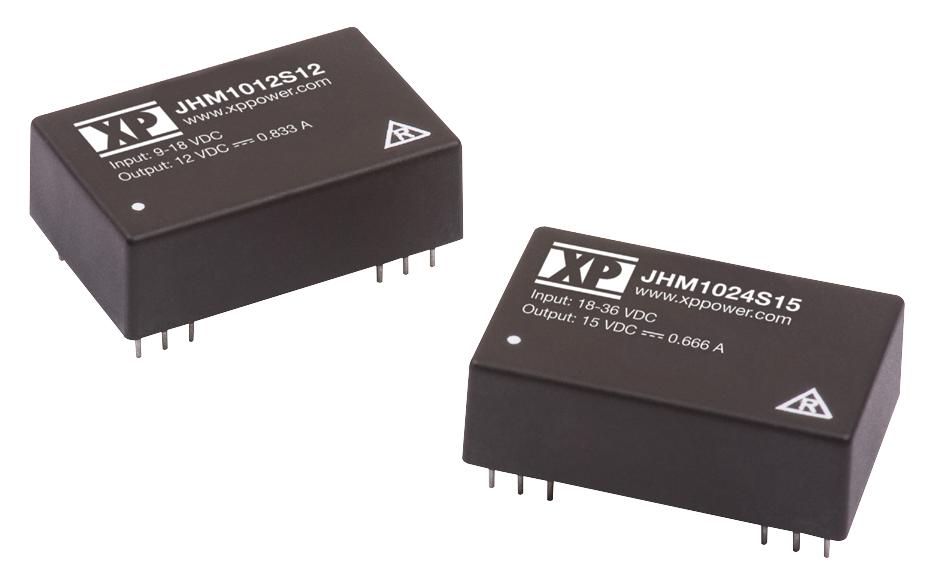

XP POWER - JHM1012D12 - Isolated Through Hole DC/DC Converter, Medical, 2:1, 10 W, 2 Output, 12 V, 420 mA
- No. of Outputs: 2 Output
- Output Power Max: 10W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 420mA
- Output Voltage - Output 2: -12V
- Output Current - Output 2: 420mA
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JHM10 Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 18V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.32mm
- Height: 12.7mm
- Depth: 31.75mm
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA 22.2 No. 60601, IEC 60601, UL 60601
- Approvals & Standards: CSA 22.2 No. 60601, ES 60601, IEC 60601
- Isolation Voltage: 4kV
- No. of Outputs: 2Outputs
- Power Rating: 10W
- Supply Voltage: 12V
