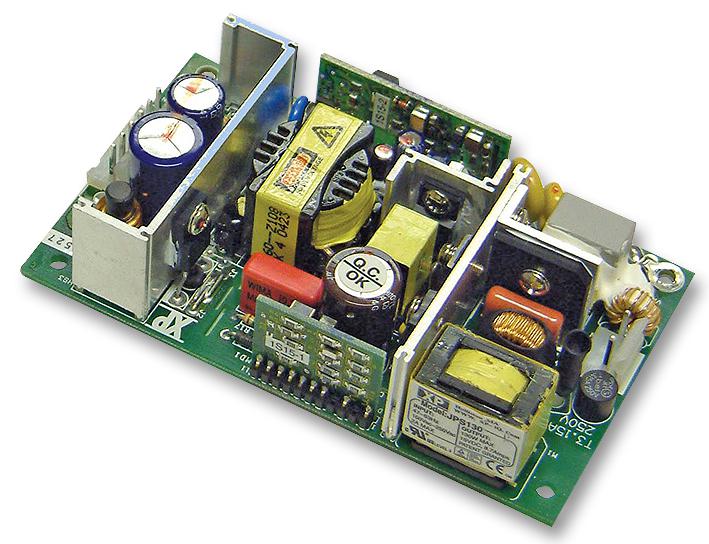

XP POWER - JPS130PS28-M - AC/DC Open Frame Power Supply (PSU), ITE, 1 Output, 130W @ 18CFM, 100 W, 90V AC to 264V AC, Fixed
- No. of Outputs: 1 Output
- Power Rating (Covection Cooling): 100W
- Power Rating (Forced Cooling): 130W @ 18CFM
- Input Voltage VAC: 90V AC to 264V AC
- Power Supply Output Type: Fixed
- Output Voltage - Output 1: 28V
- Output Current - Output 1: 3.8A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Output Voltage - Output 4: -
- Current, Output 4: -
- Product Range: JPS Series
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CE, CSA, EN, UL
- Approvals / Standards: CSA 22.2 No. 60601, EN 60601, UL 60601
- External Depth: 127mm
- External Length / Height: 32.4mm
- External Width: 76.2mm
- Height: 32.4mm
- Input Frequency: 63Hz
- Input Voltage AC Max: 264V
- Input Voltage AC Min: 90V
- Length: 127mm
- No. of Outputs: 1Outputs
- Output Current Max: 3.8A
- Output Power Max: 130W
- Power Rating: 130W
- Power Supply Type: Switch Mode
- Supply Frequency Max: 63Hz
- Supply Frequency Min: 47Hz
- Supply Voltage: 264V
- Supply Voltage Max: 264V
- Supply Voltage Min: 90V
