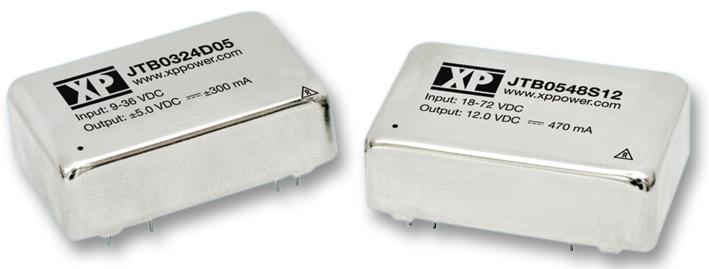

XP POWER - JTB0548S05 - Isolated Through Hole DC/DC Converter, Regulated, ITE, 4:1, 5 W, 1 Output, 5 V, 1 A
- No. of Outputs: 1 Output
- Output Power Max: 5W
- Output Voltage - Output 1: 5V
- Output Current - Output 1: 1A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JTB03/05 Series
- Input Voltage DC Min: 18V
- Input Voltage DC Max: 72V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.3mm
- Height: 10.2mm
- Depth: 31.8mm
- SVHC: No SVHC (15-Jan-2018)
- Efficiency: 78%
- External Depth: 10.2mm
- External Length / Height: 31.8mm
- External Width: 20.3mm
- Isolation Voltage: 1.5kV
- Line Regulation: 0.5%
- Load Regulation: 0.5%
- No. of Outputs: 1Outputs
- Off Load Current: 7.5mA
- Operating Temperature Max: 100°C
- Operating Temperature Min: -25°C
- Output Ripple Voltage pk-pk: 100mV
- Power Rating: 5W
- Supply Voltage: 48V
