description

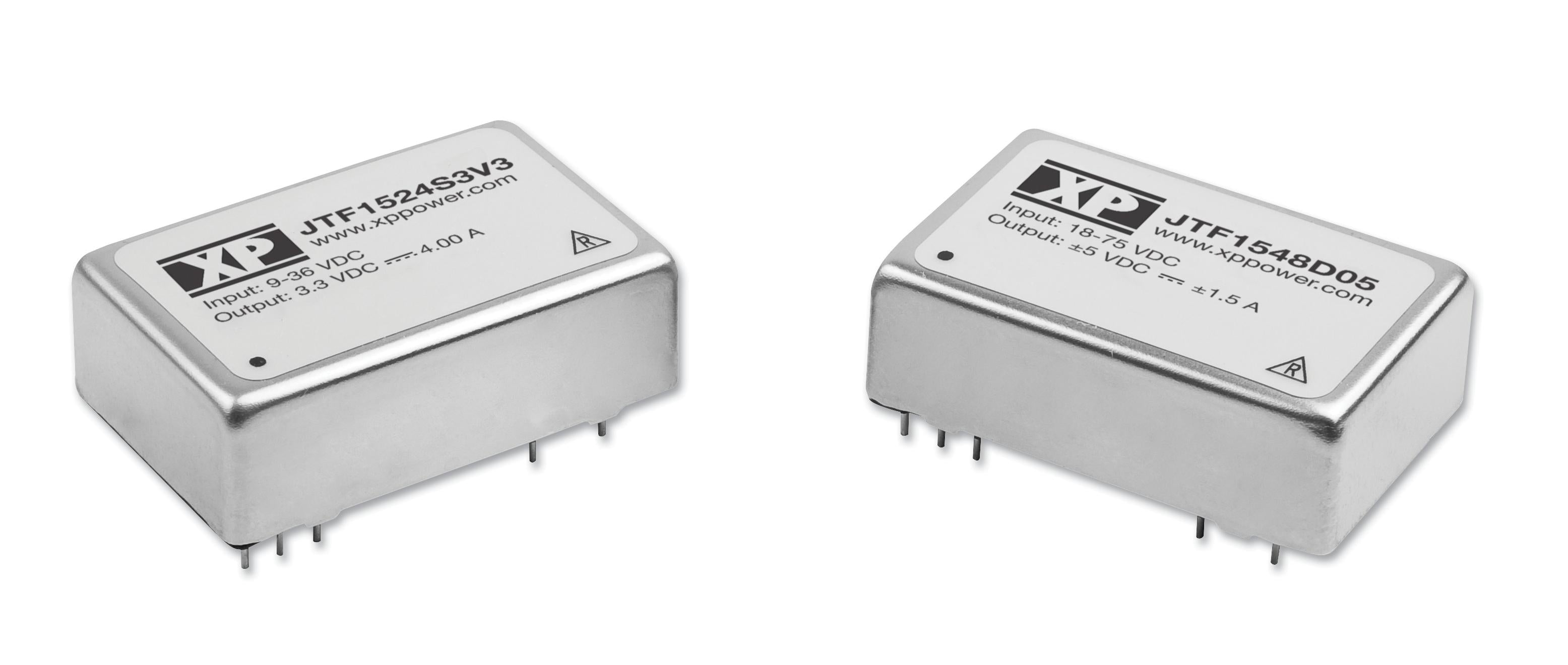

XP POWER - JTF1524S05 - Isolated Through Hole DC/DC Converter, 4:1 Input, ITE, 4:1, 15 W, 1 Output, 5.1 V, 3 A
- No. of Outputs: 1 Output
- Output Power Max: 15W
- Output Voltage - Output 1: 5.1V
- Output Current - Output 1: 3A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JTF Series
- Input Voltage DC Min: 9V
- Input Voltage DC Max: 36V
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 20.32mm
- Height: 10.16mm
- Depth: 31.75mm
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: EN
- Isolation Voltage: 1.6kV
- No. of Outputs: 1Outputs
- Power Rating: 15W
- Supply Voltage: 24V
