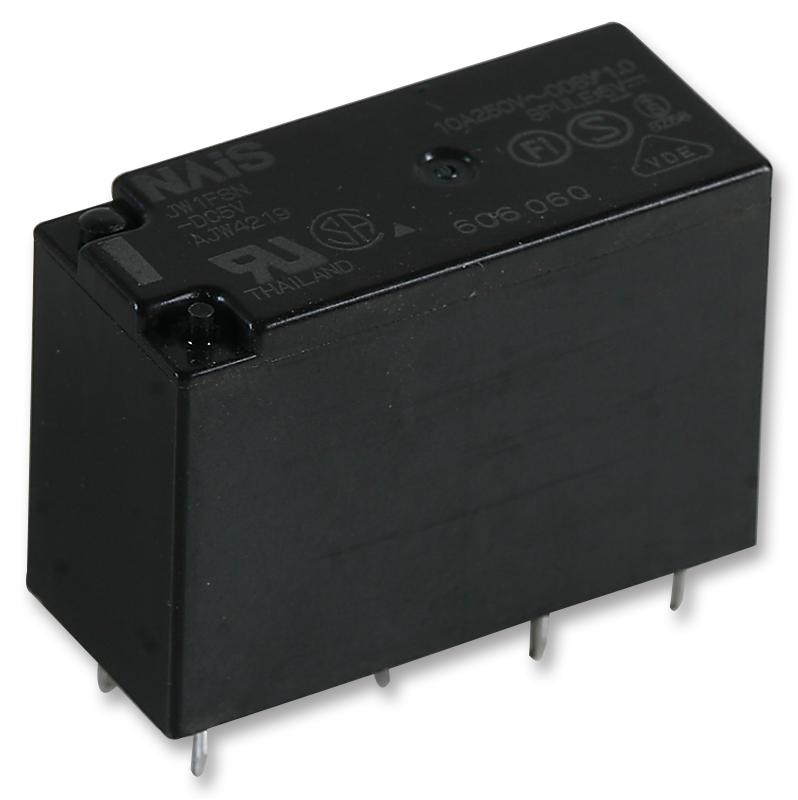

JW1FSN-DC5V Relay, SPDT, 277VAC, 30Vdc, 5A Panasonic

PANASONICUGS :JW1FSN-DC5V Code de commande:845851

Prix:
Prix ​​promotionnel€4,29

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (120 unité)

Documents et téléchargements

description

PANASONIC - JW1FSN-DC5V - General Purpose Relay, JW Series, Power, Non Latching, SPDT, 5 VDC, 10 A

  • Contact Configuration: SPDT
  • Coil Voltage: 5VDC
  • Contact Current: 10A
  • Product Range: JW Series
  • Relay Mounting: Through Hole
  • Coil Type: Non Latching
  • Contact Voltage VAC: 277VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Nickel
  • Coil Resistance: 47ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Approvals & Standards: CSA, UL, VDE
  • Coil Current: 106mA
  • Coil Voltage VDC Nom: 5V
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Resistance: 100mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Max: 30V
  • Contact Voltage DC Nom: 30V
  • DC Coil Power: 530mW
  • Dielectric Strength VDC: 1000V
  • External Depth: 12.8mm
  • External Height: 20mm
  • External Width: 28.6mm
  • IP / NEMA Rating: IP67
  • Insulation Resistance: 1000Mohm
  • No. of Mechanical Operations: 106
  • Nom Operating Power: 530mW
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -40°C
  • Relay Type: Power
  • Release Time: 5ms
  • Weight: 15g
