description

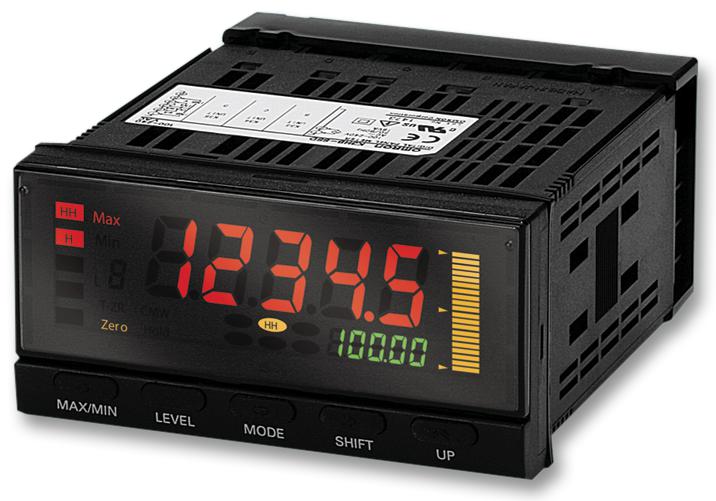

OMRON - K3HBCPB 24VACVDC - Frequency Meter, K3HB-C Series, 50 kHz, 5 Digits, 24 V, PNP
- No. of Digits / Alpha: 5
- Meter Function: Frequency
- Meter Range: 0kHz to 30kHz, 0kHz to 25kHz, 0kHz to 50kHz
- Digit Height: 14.2mm
- Panel Cutout Height: 45mm
- Panel Cutout Width: 92mm
- Supply Voltage Min: -
- Supply Voltage Max: 24V
- Operating Temperature Min: -10°C
- Operating Temperature Max: 55°C
- Product Range: -
- Approval Bodies: CE, cRUus
- Display: Backlit LCD Display
- External Depth: 95mm
- External Length / Height: 48mm
- For Use With: Digital Signal Input Model
- Input: PNP Input
- Operating Temperature Range: -10°C to +55°C
- Output Current Max: 5A
- Output Voltage Max: 250VAC
- Power Consumption: 7W
- Supply Voltage AC Max: 24VAC
- Supply Voltage DC Max: 24VDC
