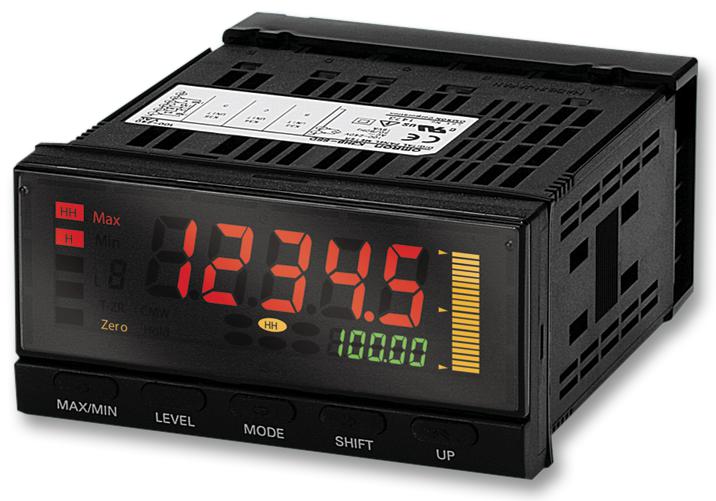

OMRON - K3HBRNB 100/240VAC - Digital Indicator, K3HB-R Series, Rotary Pulse, 0.5mHz to 50kHz, 5 Digits, 100 Vac to 240 Vac, NPN
- No. of Digits / Alpha: 5
- Meter Function: -
- Meter Range: 0.5mHz to 50kHz
- Digit Height: 14.2mm
- Panel Cutout Height: 45mm
- Panel Cutout Width: 92mm
- Supply Voltage Min: 100VAC
- Supply Voltage Max: 240VAC
- Operating Temperature Min: -10°C
- Operating Temperature Max: 55°C
- Product Range: -
- Approval Bodies: CE, cRUus, UL
- Display: Backlit LCD Display
- External Depth: 95mm
- External Length / Height: 48mm
- For Use With: Digital Signal Input Model
- Input: NPN Input/Voltage Pulse Input
- Operating Frequency: 50kHz
- Operating Temperature Range: -10°C to +55°C
- Output Current Max: 5A
- Output Voltage Max: 250VAC
- Power Consumption: 18VA
- Supply Voltage AC Max: 240VAC
- Supply Voltage AC Min: 100VAC
