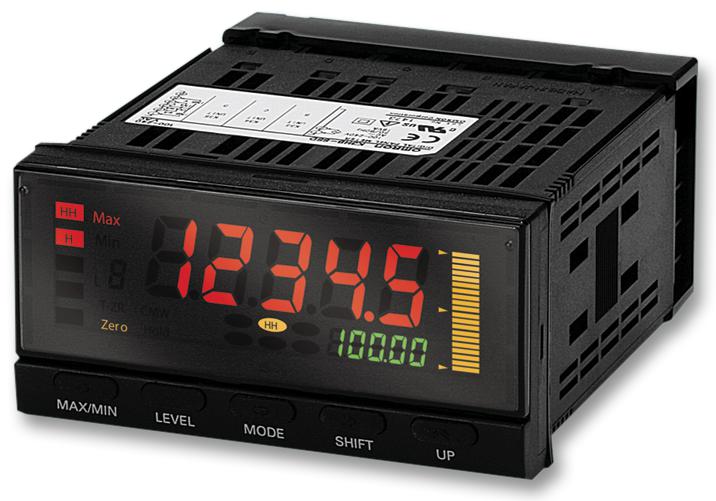

OMRON - K3HBXVD 100/240VAC - Process Indicator, K3HB-X Series, DC Voltage, 100 Vac to 240 Vac
- No. of Digits / Alpha: -
- Meter Function: DC Voltage
- Meter Range: 1V to 5V
- Digit Height: 14.2mm
- Panel Cutout Height: 45mm
- Panel Cutout Width: 92mm
- Supply Voltage Min: 100VAC
- Supply Voltage Max: 240VAC
- Operating Temperature Min: -10°C
- Operating Temperature Max: 55°C
- Product Range: -
- Approval Bodies: CE, cRUus, UL
- Current Consumption: 50mA
- External Depth: 95mm
- External Length / Height: 48mm
- For Use With: Discriminating and Displaying Measurements for Voltage/Current Signals
- IP / NEMA Rating: IP20
- Input: DC Voltage Input
- Operating Temperature Range: -10°C to +55°C
- Power Consumption: 18VA
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Supply Voltage AC Max: 240VAC
- Supply Voltage AC Min: 100VAC
