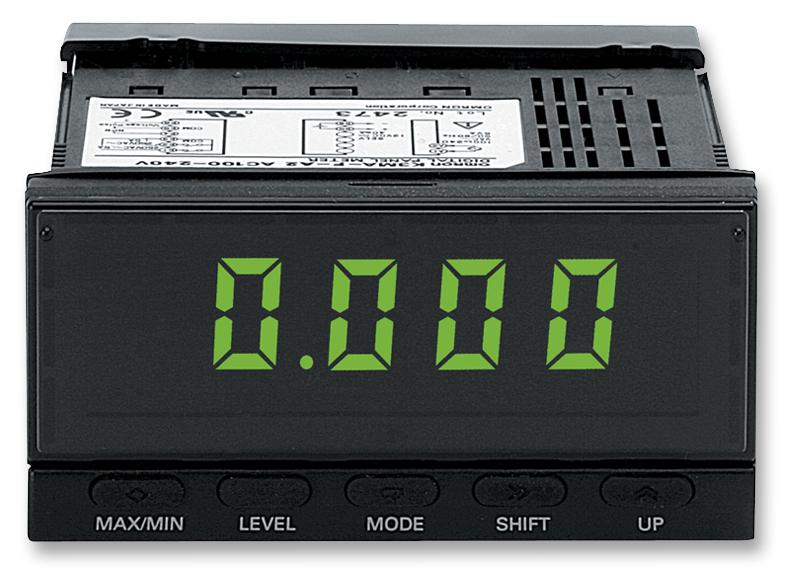

OMRON - K3MALC100240VAC - Digital Panel Meter, 100-240VAC, 4 Digits, Temperature, -200°C to +850°C, -300°F to +1500°F
- No. of Digits / Alpha: 4
- Meter Function: Temperature
- Meter Range: -200°C to +850°C, -300°F to +1500°F
- Digit Height: 14.2mm
- Panel Cutout Height: 45mm
- Panel Cutout Width: 92mm
- Supply Voltage Min: 100VAC
- Supply Voltage Max: 240VAC
- Operating Temperature Min: -10°C
- Operating Temperature Max: 55°C
- Product Range: -
- Approval Bodies: EN, UL
- Contact Voltage DC Max: 150VDC
- Current Rating: 5A
- Display: 2 Colour LCD Display
- External Depth: 80mm
- External Length / Height: 96mm
- External Width: 48mm
- Input: Platinum-resistance Thermometer or Thermocouple
- No. of Analogue Inputs: 1
- No. of Digital Outputs: 1
- No. of Outputs: 1Outputs
- Operating Temperature Range: -10°C to +55°C
- Power Consumption: 6VA
- Supply Voltage AC Max: 240VAC
- Supply Voltage AC Min: 100VAC
- Weight: 200g
