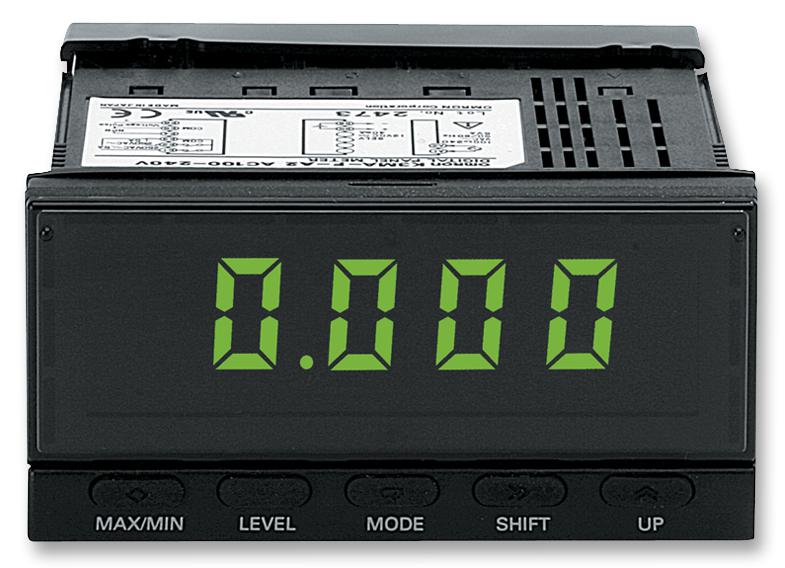

OMRON - K3MALC24ACDC - Temperature Meter, K3MA-L Series, -200°C to +850°C, -300°F to +1500°F, 4 Digits, 24 V, Relay Output
- No. of Digits / Alpha: 4
- Meter Function: -
- Meter Range: -200°C to +850°C, -300°F to +1500°F
- Digit Height: 14.2mm
- Panel Cutout Height: -
- Panel Cutout Width: -
- Supply Voltage Min: -
- Supply Voltage Max: 24V
- Operating Temperature Min: -10°C
- Operating Temperature Max: 55°C
- Product Range: -
- Approval Bodies: EN, UL
- Contact Voltage DC Max: 150VDC
- Current Rating: 5A
- Display: 2 Colour LCD Display
- External Depth: 80mm
- External Length / Height: 96mm
- External Width: 48mm
- Input: Platinum-resistance Thermometer or Thermocouple
- No. of Analogue Inputs: 1
- No. of Digital Outputs: 1
- No. of Outputs: 1Outputs
- Operating Temperature Range: -10°C to +55°C
- Power Consumption: 4.5W
- Supply Voltage AC Max: 24VAC
- Supply Voltage DC Max: 24VDC
- Weight: 200g
