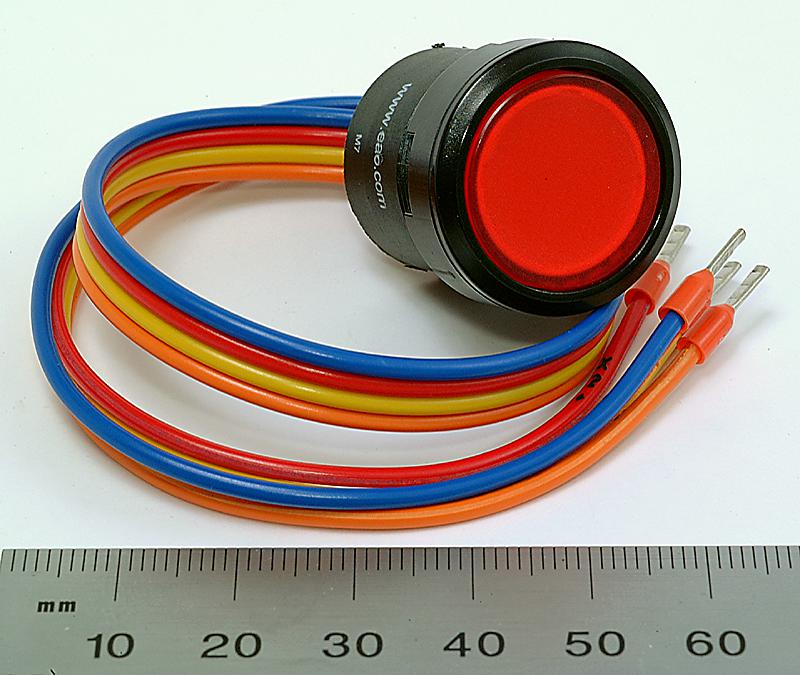

EAO - K84-603.4305 - Pushbutton Switch, 84, 22.5 mm, SPST-NO, Momentary, Flush, Red
- Product Range: 84 Series
- Contact Configuration: SPST-NO
- Switch Operation: Momentary
- Contact Current Max: 100mA
- Contact Voltage AC Nom: 42V
- Illumination Colour: Red
- Contact Voltage DC Nom: 42V
- Switch Terminals: Wire Leaded
- SVHC: No SVHC (15-Jan-2018)
- Actuation Type: Round
- Actuator / Cap Colour: Red
- Behind Panel Depth: 25mm
- Bezel Diameter: 25mm
- Colour: Red
- Contact Current AC Max: 100mA
- Contact Current DC Max: 100mA
- Contact Current Rating: 100mA
- Contact Voltage VAC: 42V
- Contact Voltage VDC: 42V
- External Length / Height: 29mm
- IP / NEMA Rating: IP67
- IP Rating: IP67
- LED Voltage: 24V
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 22.5mm
- Pushbutton Actuator Style: Flush
- Pushbutton Switch Type: Standard
- Switch Mounting: Panel
- Voltage Rating V DC: 24V
