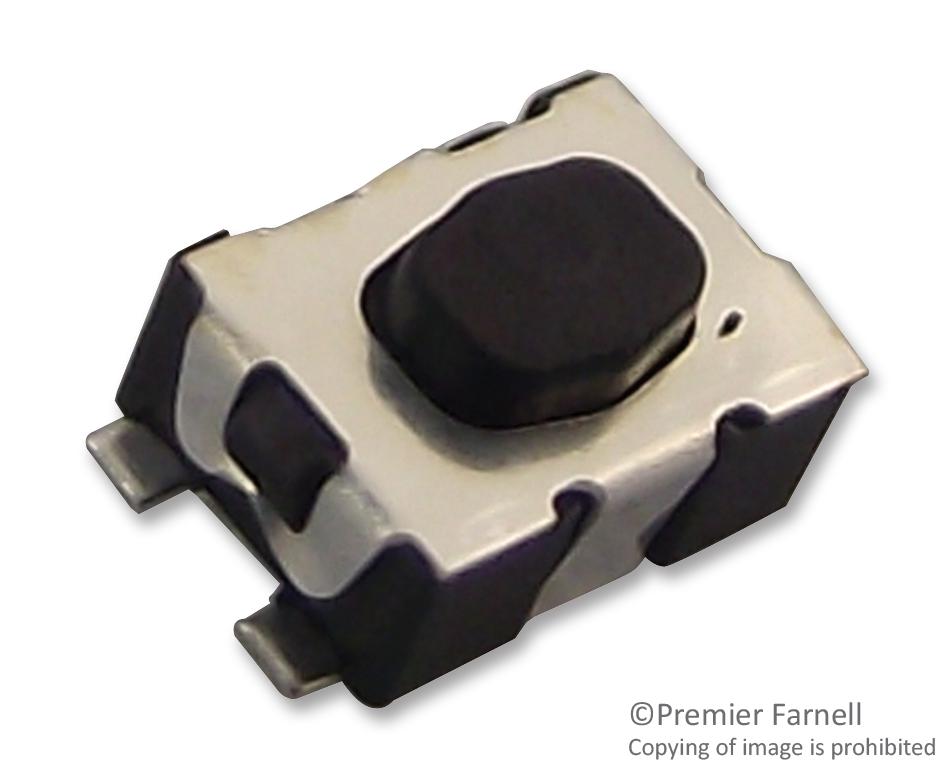

KMR221G LFS Switch, SPST, 0.05A, 32VDC, SMD C&K Components

C&K COMPONENTSUGS :KMR221G LFS Code de commande:1201424

Prix:
Prix ​​promotionnel€0,99

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (39942 unité)

Documents et téléchargements

description

C&K COMPONENTS - KMR221G LFS - Tactile Switch, KMR2, Top Actuated, Surface Mount, Oval Button, 200 gf, 50mA at 32VDC

  • Product Range: KMR2 series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Oval Button
  • Actuating Force: 200gf
  • Contact Rating: 50mA at 32VDC
  • Switch Dimensions (L x W): 4.2mm x 2.8mm
  • IP Rating: IP40
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Actuator / Cap Colour: Black
  • Contact Configuration: SPST-NO
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Nom: 32V
  • Operating Force: 2N
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -40°C
  • Power Rating: 1VA
  • Switch Terminals: Solder
