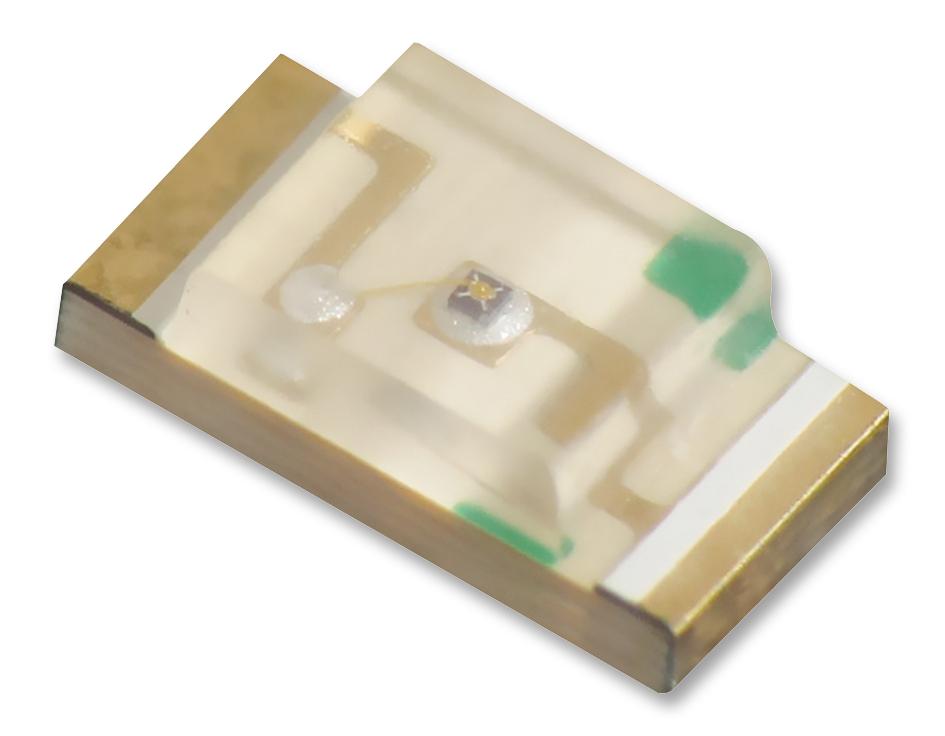

KINGBRIGHT - KP-3216SYCK - LED, Low Power, Yellow, SMD, 1206 (3216 Metric), 20 mA, 2 V, 590 nm
- LED Colour: Yellow
- LED Mounting: SMD
- LED Case Size: 1206 (3216 Metric)
- Forward Current If: 20mA
- Forward Voltage: 2V
- Wavelength Typ: 590nm
- Luminous Intensity: 150mcd
- Viewing Angle: 120°
- Lens Shape: Rectangular
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Current If Luminous Intensity: 20mA
- External Depth: 1.6mm
- External Length / Height: 1.1mm
- External Width: 3.2mm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.5V
- Lens Colour: Water Clear
- Luminous Intensity Typ: 120mcd
- Material: InGaAlP
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
