KRM 03 Terminal Block, Wire TO BRD, 3Pos Lumberg

LUMBERGUGS :KRM 03 Code de commande:1177876

Prix:
Prix ​​promotionnel€1,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (7036 unité)

Documents et téléchargements

description

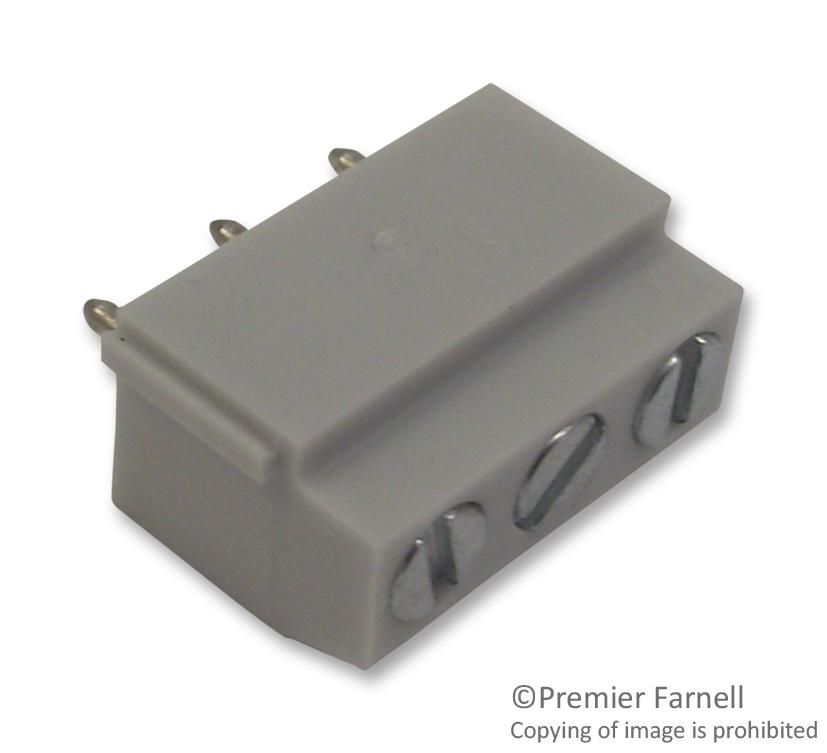

LUMBERG - KRM 03 - Wire-To-Board Terminal Block, 5 mm, 3 Ways, 2.5 mm², Screw

  • Pitch Spacing: 5mm
  • No. of Positions: 3Ways
  • Wire Size AWG Min: -
  • Wire Size AWG Max: -
  • Conductor Area CSA: 2.5mm²
  • Wire Connection Method: Screw
  • Rated Current: 15A
  • Rated Voltage: 250V
  • Block Orientation: Through Hole Right Angle
  • Product Range: -
  • SVHC: Lead (15-Jan-2019)
  • Approval Bodies: CSA, UL
  • Connector Mounting: Through Hole Mount
  • Connector Type: Terminal Block, PCB
  • Contact Material: Copper
  • Contact Plating: Tin Plated Contacts
  • External Length / Height: 15mm
  • External Width: 7.5mm
  • Flammability Rating: UL94V-0
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -25°C
  • RMS Current (Irms): 15A
  • Voltage Rating VAC: 250V
