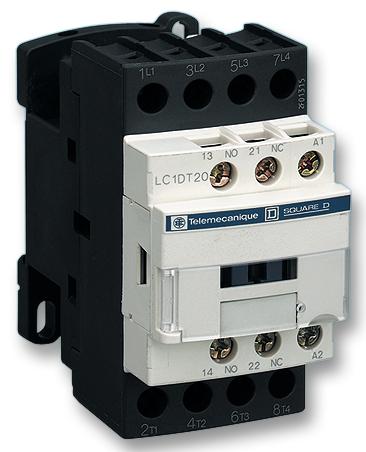

LC1DT20P7 Contactor, 4NO, 20A, 230VAC Schneider Electric

SCHNEIDER ELECTRICUGS :LC1DT20P7 Code de commande:4231879

Prix:
Prix ​​promotionnel€81,61

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 2 produits disponibles

Documents et téléchargements

description

SCHNEIDER ELECTRIC - LC1DT20P7 - Contactor, LC1D, DIN Rail, 230 VAC, 4PNO, 4 Pole

  • Load Current Inductive: -
  • Relay Mounting: DIN Rail
  • Operating Voltage: 230VAC
  • Contact Configuration: 4PNO
  • No. of Poles: 4 Pole
  • Switching Power AC3: -
  • Switching Current AC1: 20A
  • Coil Voltage VAC Nom: 230V
  • Coil Voltage VDC Nom: 110V
  • Switching Power AC1: -
  • Load Current Resistive: 20A
  • Switching Current AC3: -
  • Product Range: TeSys D Series
  • SVHC: No SVHC (15-Jan-2018)
  • Coil Frequency Max: 60Hz
  • Coil Holding Power: 7.5VA
  • Coil Operating Frequency Min: 50Hz
  • Coil Operating Voltage: 230V
  • Coil Pull-in Power: 70VA
  • Contact Current AC Max: 20A
  • Contact Voltage AC Max: 230V
  • External Depth: 90mm
  • External Length / Height: 85mm
  • External Width: 45mm
  • Main Contact Current AC1 Max: 20A
  • Relay Type: Contactor
