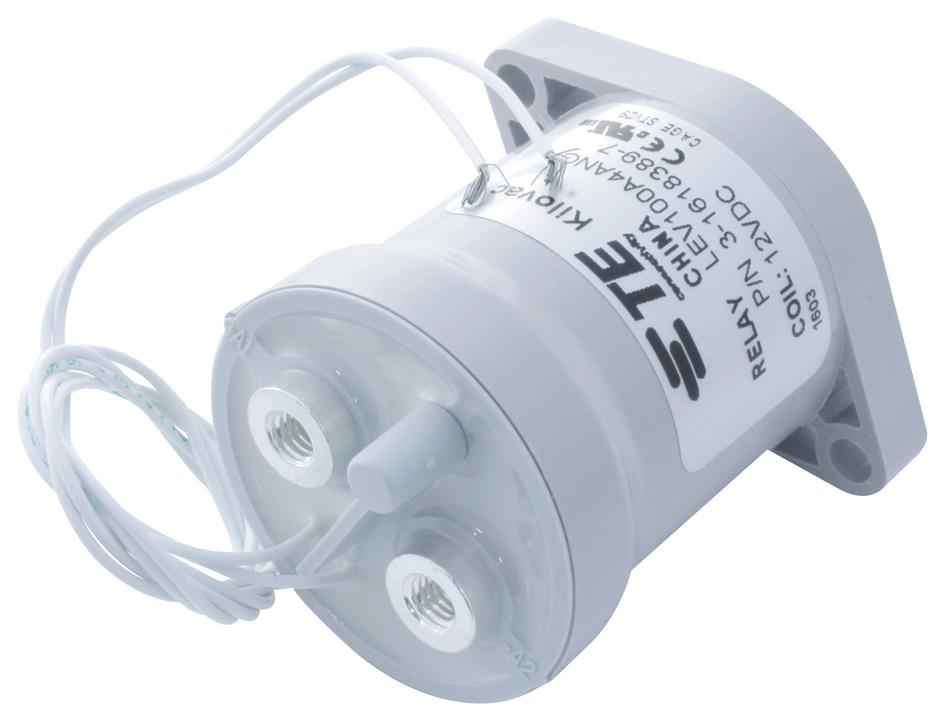

KILOVAC - TE CONNECTIVITY - LEV100A4ANH - Contactor, 100 A, Panel Mount, 900 VDC, SPST-NO, 1 Pole
- Load Current Inductive: 100A
- Relay Mounting: Panel
- Operating Voltage: 900VDC
- Contact Configuration: SPST-NO
- No. of Poles: 1 Pole
- Switching Power AC3: -
- Switching Current AC1: 100A
- Coil Voltage VAC Nom: -
- Coil Voltage VDC Nom: 12V
- Switching Power AC1: -
- Load Current Resistive: 100A
- Switching Current AC3: -
- Product Range: KILOVAC LEV100 Series
- SVHC: No SVHC (15-Jan-2019)
- Coil Current: 360mA
- Coil Type: DC
- Coil Voltage Max: 16VDC
- Coil Voltage Min: 9VDC
- Contact Current DC Max: 100A
- Contact Current Max: 100A
- Contact Voltage DC Max: 900V
- Contact Voltage DC Nom: 900V
- DC Coil Power: 4.5W
- Dielectric Voltage Coil to Contact: 4000VDC
- Dielectric Voltage Contact to Contact: 8000VDC
- External Depth: 40mm
- External Length / Height: 57.96mm
- Fixing Centres: 46.3mm
- No. of Mechanical Operations: 1000000
- Nom Operating Power: 5.5W
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Time: 40ms
- Relay Type: Contactor
- Release Time: 10ms
- Switch Current Max: 100A
