LF07WBR-6S Receptacle, Female Pins, 6Way Hirose(Hrs)

HIROSE(HRS)UGS :LF07WBR-6S Code de commande:1518761

Prix:
Prix ​​promotionnel€14,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (343 unité)

Documents et téléchargements

description

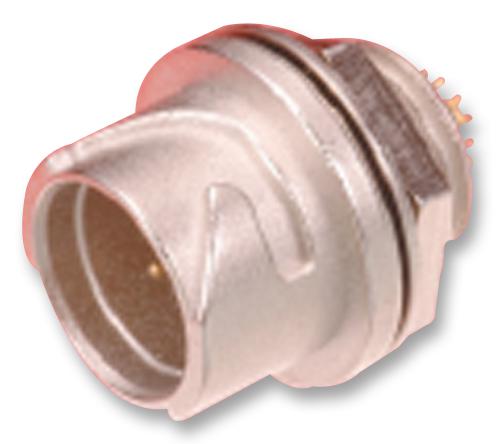

HIROSE(HRS) - LF07WBR-6S - Circular Connector, IP67, IP68, LF Series, Panel Mount Receptacle, 6 Contacts, Solder Socket

  • Product Range: LF Series
  • Circular Connector Shell Style: Panel Mount Receptacle
  • No. of Contacts: 6Contacts
  • Circular Contact Type: Solder Socket
  • Coupling Style: -
  • Connector Body Material: Zinc Alloy Body
  • Connector Body Plating: -
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Cable Diameter Max: 5mm
  • Connector Insert Type: 7-6
  • Connector Mounting: Panel Mount
  • Connector Shell Size: 7
  • Connector Type: Circular Industrial
  • Contact Gender: Socket
  • Contact Plating: Gold Plated Contacts
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 2A
  • Gender: Receptacle
  • Insert Arrangement: 7-6
  • No. of Mating Cycles: 1000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 30V
