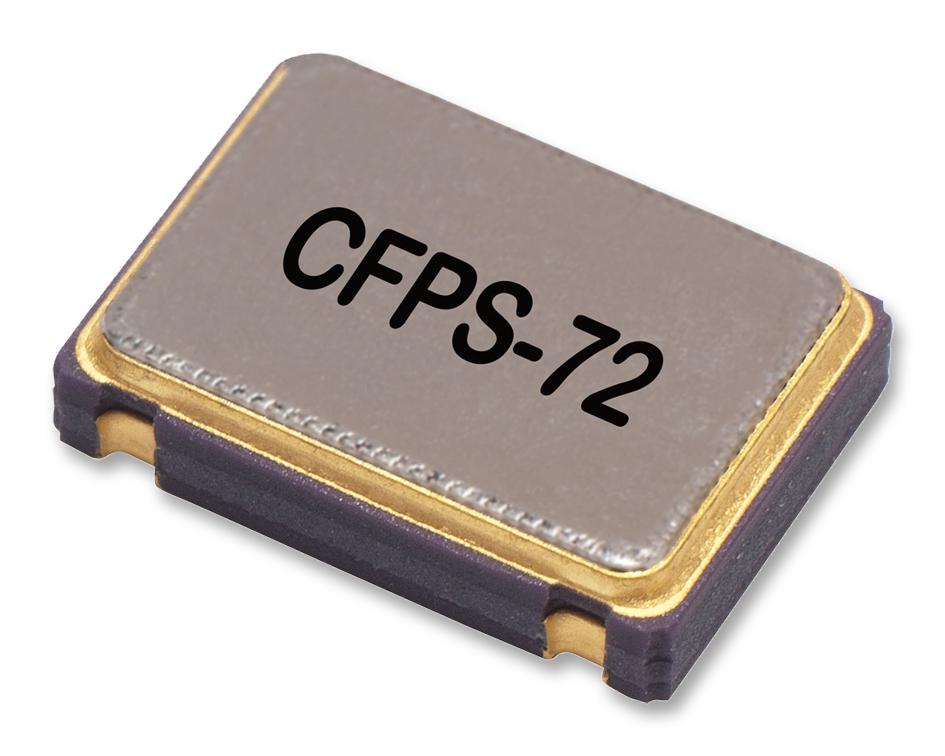

IQD FREQUENCY PRODUCTS - LFSPXO019079 - Oscillator, Crystal, 8 MHz, 50 ppm, SMD, 7mm x 5mm, 5 V, CFPS-72 Series
- Frequency Nom: 8MHz
- Frequency Stability + / -: 50ppm
- Oscillator Case: SMD, 7mm x 5mm
- Supply Voltage Nom: 5V
- Product Range: CFPS-72 Series
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Oscillator Output Compatibility: HCMOS / TTL
- SVHC: No SVHC (15-Jan-2018)
- Accuracy: ± 50ppm
- Crystal Case: CFPS-72
- Duty Cycle (%): 55%
- Duty Cycle Lower Limit: 45%
- Duty Cycle Upper Limit: 55%
- Fall Time tf: 6ns
- Frequency: 8MHz
- Frequency Accuracy + @: 50ppm
- Frequency Accuracy - @: 50ppm
- Frequency Stability: ± 50ppm
- Load Capacitance: 50pF
- No. of Pins: 4Pins
- Operating Temperature Range: 0°C to +70°C
- Output Drive Level: HCMOS/LS TTL
- Output Frequency: 8MHz
- Resonator Case: SMD
- Rise Time: 6ns
- Supply Current Max: 20mA
- Temperature Stability + @: 50ppm
- Temperature Stability - @: 50ppm
- Temperature Stabilty: ± 50ppm
- Type: SPXO
